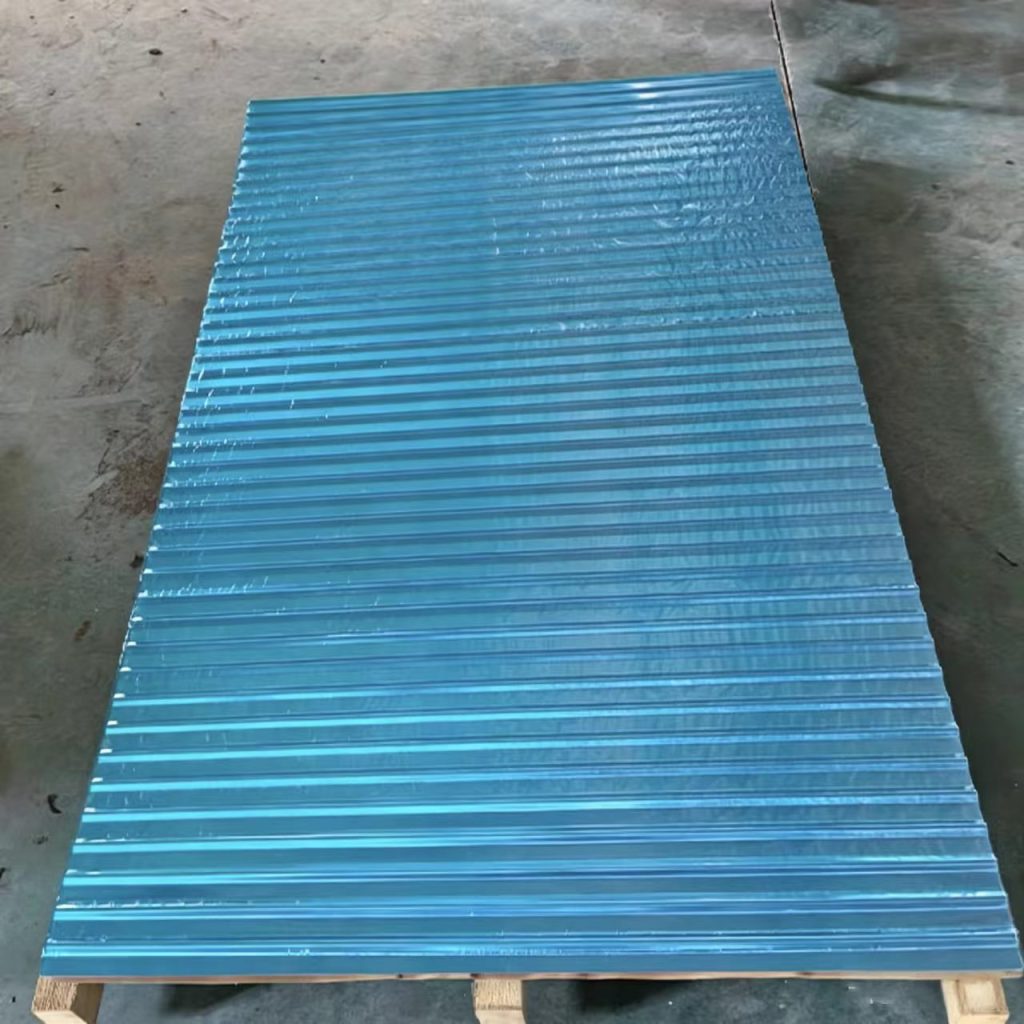

Corrugated plate—also known as corrugated steel plate or corrugated metal plate—is a type of metal plate featuring a wavy, ribbed surface; it is commonly used in industries such as construction, automotive, and aerospace. Possessing excellent strength and rigidity, it can withstand significant loads and deformation, making it widely applicable in areas such as container manufacturing, vehicle bodywork, building envelopes, and steel bridge structures.
Recently, Shanghai ANTS Machine Equipment Co., Ltd. received an inquiry from a European construction company seeking a hydraulic press for processing corrugated plates. Based on the client’s specific requirements, we recommended an 800-ton, four-column hydraulic press featuring multiple cylinders and a large bed area, designed for corrugated plate forming.

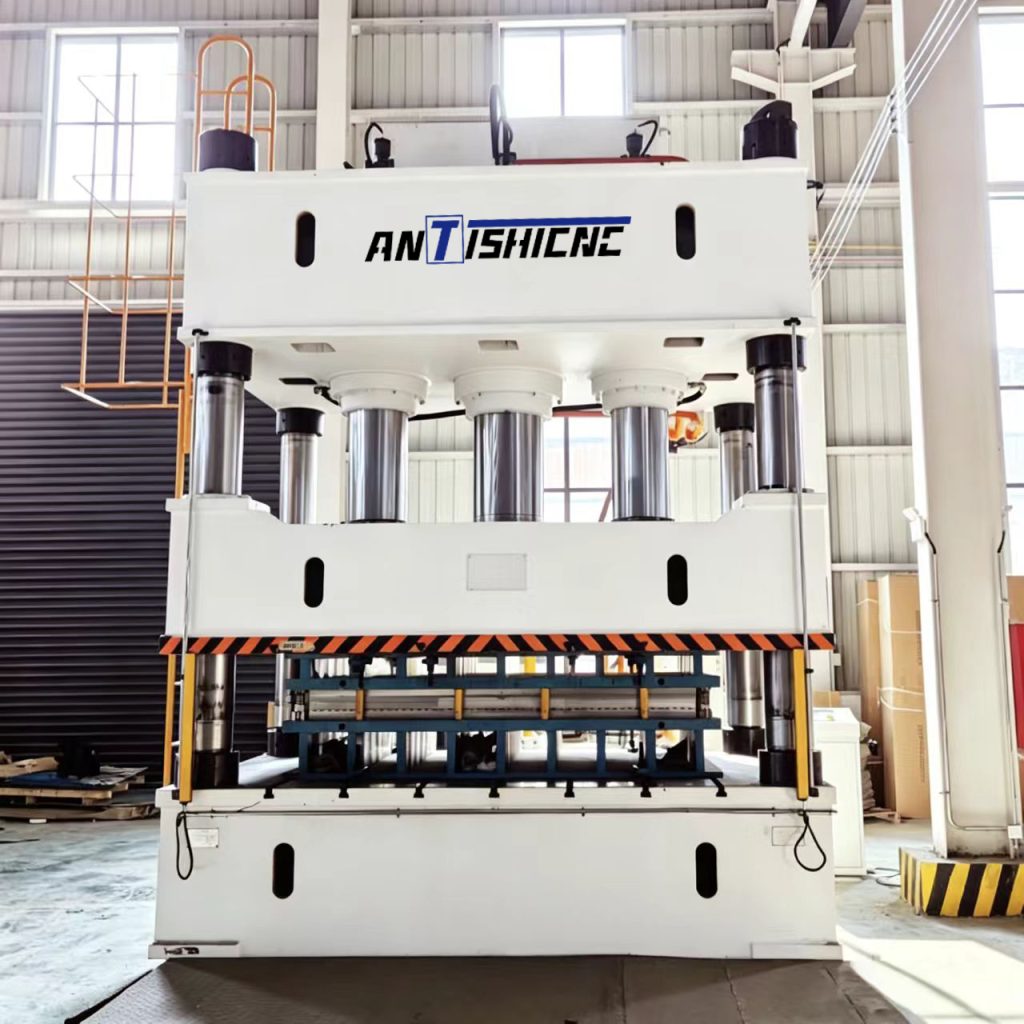

The 800-ton corrugated plate forming hydraulic press—also known as an 800-ton four-column hydraulic press—features a nominal force of 8000 kN and utilizes a three-beam, four-column structure. Through precise mold alignment and a powerful hydraulic system, it presses flat metal plates into corrugated products with specific wave heights, pitches, and shapes, offering outstanding advantages such as high forming precision, rapid production efficiency, and a wide range of applications.
- Single-step forming for high efficiency
Traditional corrugated plate processing often requires multiple stages; however, an 800-ton four-column hydraulic press paired with precision tooling enables thick plates to be formed in a single stamping operation. This eliminates the need for repeated pressing or subsequent reshaping, significantly shortening production cycles and boosting output capacity.
- High forming precision and stable quality
The four-column guide structure, combined with high-precision molds, ensures that the pressed corrugated plates feature uniform corrugation heights, distinct edges and corners, and consistent dimensions.
- High pressing force and wide material compatibility
The 800-ton nominal force is sufficient to handle the pressing requirements for most medium-to-thick plates. It can process various materials—such as steel, aluminum, stainless steel, and color-coated steel—meeting the corrugated plate production needs of diverse industries.
- Flexible operation and adjustable processing parameters
The equipment supports manual, semi-automatic, and automatic operation modes, enabling both constant-pressure and constant-stroke forming processes. Working pressure, pressing speed, and stroke range can be freely adjusted to meet specific production requirements for different corrugation specifications.
- Robust structure and long service life
The machine frame is constructed from welded high-quality steel plate and undergoes aging treatment; the columns are made of high-strength alloy steel with a hard-chrome plated finish, ensuring excellent wear and corrosion resistance. The hydraulic system utilizes an integrated cartridge valve design, resulting in fewer leakage points, minimal impact, and reliable operation, thereby effectively extending the equipment’s service life.
Operating Principle:
During operation, the metal plate to be processed is placed on the lower die of the worktable. Upon activation, the hydraulic system drives the slide to descend rapidly; as it approaches the workpiece, the speed shifts to the working speed for the pressing operation. Once the preset pressure or stroke is reached, a dwell period follows to ensure the corrugations are fully formed. Subsequently, the slide retracts, and the ejection mechanism ejects the finished part, completing the work cycle.
The main specifications of the machine are as follows:
| Description | Unit | YQ32-800T | |
| Nominal force | KN | 8000 | |
| Maximum fluid pressure | Mpa | 25 | |
| Slide stroke | mm | 900 | |
| Machine maximum opening height | mm | 1500 | |
| Ejection force | t | 125 | |
| Working table size | Left and right | mm | 1500 |
| Front and back | mm | 1500 | |
| Slide speed | Quick descent | mm/s | 120 |
| Work | mm/s | 6-15 | |
| Return trip | mm/s | 90 | |
| Motor power | kw | 37*2 | |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have requirements for corrugated plate forming needs too, welcome to consult Shanghai ANTS Machine Equipment co., Ltd. We have rich experience in manufacturing and using hydraulic press machine machine machine and can provide you with professional technical support.
