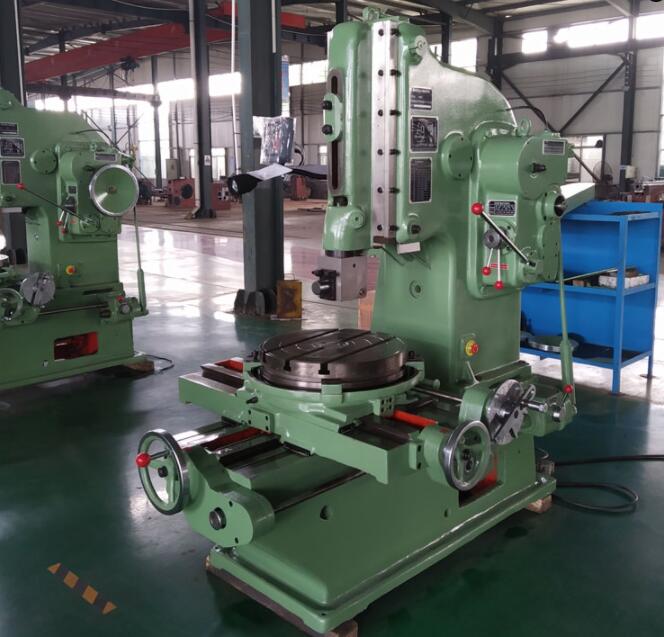

slotting machine for metal B5020 B5032 ,price of B5032 New Decisigned Automatic Slotter CNC Slotting Machine Price
1)The machine is used to process all kinds of parts of the plane, type and keyway, single or small batch production workshop is most suitable.
2) The main turning mechanism is the rotary motion of the variable handle gear, which can be used for longitudinal, give.
3) Beautiful appearance, easy maintenance.
4) The machine uses three-phase AC power supply, voltage 380 volts, frequency 50 Hz.
Specification | Unit | B5032 | B5020 |
Max. Slotting length | mm | 320 | 220 |
Worktable size | mm | 630*560 | 200 |
Ram motion frequency | times/min | 20.32.50.80 | 32.50.80.125 |
Ram tilt angle | ° | 0-8 | 0-8 |
Ram vertical adjustment distance | mm | 315 | 230 |
Cutter head bearing surface to the distance between the forearm bed | mm | 600 | 485 |
Table Diameter | mm | 630 | 500 |
The distance between the lower end of the sliding frame to work table | mm | 490 | 320 |
Max. longitudinal moving distance of working table | mm | 630 | 500 |
Max. transverse moving distance of working table | mm | 560 | 500 |
Table maximum rotation angle | ° | 360 | 360 |
Vertical and horizontal table power feed range | mm | 0.08-1.21 | 0.08-1.21 |
Table rotary feed range | mm | 0.052-0.783 | 0.052-0.783 |
Motor power | kw | 4 | 3 |
Motor speed | r/min | 960 | 1430 |
Machine weight | kg | 3000 | 2200 |
Outline dimension | mm | 2261*1495*2245 |
1916*1305*1995 |
