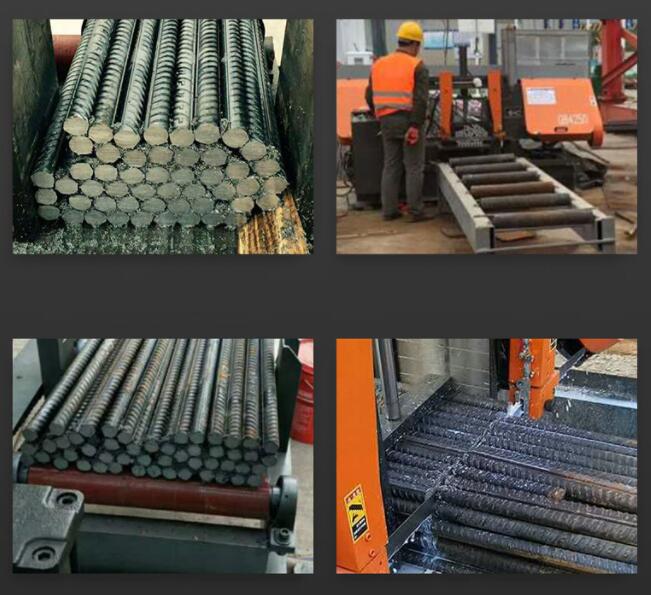

Main performance characteristics of steel bar sawing machine:
1. Very sturdy two-column cast iron structure with heavy-duty rotating console.
2. Three cutting speeds-directly converted by the main drive motor.
3. Infinitely variable saw frame feed.
4. The horizontal saw frame can be rotated 45°.
5. The saw frame automatically returns to its original position at the end of each cutting.
6. Super rigid, adjustable saw blade guide.
7. Including hydraulic workpiece clamping and clamping pressure control.
8. Standard equipment: hydraulic workpiece clamping, 1 saw blade belt, material support frame, cooling system, work lamp operation manual.
9. Optional equipment: automatic knife breaking control, rapid fall protection device, hydraulic blade tension, automatic chip removal device, various blade wire speeds, blade guards, wheel guard opening protection, Ce standard electrical equipment.
|
Item
|
Value
|
|
Machine Type
|
Band Saw Machine
|
|
Cutting Capacity (mm)
|
450*330
|
|
Blade Speed (m/min)
|
20.33.48.75
|
|
Saw Blade Tension Method
|
Manual
|
|
Weight (KG)
|
1500
|
|
Key Selling Points
|
Automatic
|
|
Motor Power (kw)
|
4
|
|
Hydraulic Motor Power (kW)
|
0.75
|
|
Band saw blade
|
41*1.3*4650
|
|
Coolant pump
|
0.09
|
|
Table height
|
610
|
|
Workpiece clamping
|
Hydraulic
|
|
Size
|
2500*1300*1600
|
|
Main transmission structure
|
Turbo drive
|
|
Cleaning
|
Wire brush and cutting coolant
|
