Radial Drilling Machine

Z3540 Z3550 Series Universal Slide Rock Drill

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Product Description

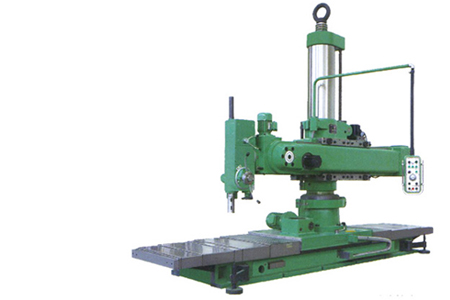

The Z3540 universal radial drilling machine can rotate 360° on its carriage, and the rocker arm can rotate 360° around the axis of the column. Therefore, the workpiece can be machined at various angles in different positions under one clamping. Of the hole. The spindle feed can be manual or motorized, and can be changed at will. The rocker arm lifting is operated by electrical buttons, which is light and safe. The electrical equipment is complete, with a sensitive master stop button, which can ensure safety during processing.

Product Features

● The guide rail, column and box body of Z3540 universal radial drilling machine are made of high-strength cast iron. After the casting, the casting is heat treated to eliminate the internal stress of the casting. The casting that eliminates the internal stress after heat treatment can maintain the stability of the main body of the machine tool, the surface of the column and the guide rail for a long time. Each contact surface is quenched to maintain the hardness of the guide rail and the column, and the machine tool can maintain the accuracy and durability for a long time;

● The electrical and motor of Z3540 radial drilling machine adopt national standard grade. Under the control of national standard grade electrical, the machine tool is more energy-saving and safe to run for longer;

● The rotating gear of the main shaft box is precision ground and carburized and quenched. The gear box runs with low noise and good transmission force;

● Domestic Harbin bearings are selected for each rolling component bearing, and the whole machine tool can perform high-speed cutting;

● The main shaft box adopts the internal circulation lubrication of the automatic oil supply system, and the gears and bearings are fully lubricated, which solves the shortcomings of insufficient lubrication of the top gears of the traditional lubrication method;

● The main shaft is equipped with a travel protection switch, which solves the problem of damage to the main shaft or gear when the main shaft is fed to the top when the worker misuses or automatically feeds;

● Column safety locking device switch, automatic lifting can automatically cut off power when workers forget to loosen the locking device, which can well protect the column from being strained and the turbine and worm from slipping;

● The lead screw is made of a brand manufacturer, which is produced and processed in strict accordance with the tempering, quenching and other lead screw processing techniques. The lead screw produced by the special lead screw processing equipment is precision ground by a grinder, and the service life is twice that of the ordinary lead screw. The nut is a brass nut with good wear resistance and precision.

● The Z3540 universal radial drilling machine has undergone strict product quality accuracy screening from rough casting, parts procurement, and supplier selection. Each process has been strictly inspected to ensure the overall accuracy requirements of the machine tool when it leaves the factory.

Machine model Z3540 Z3550
Maximum drilling diameter  mm 40 50
Distance from spindle center line to column bus bar Max.  mm 1600 1600
Min.  mm 850 850
Spindle stroke  mm 315 315
Spindle taper (Mohs) No. 4# 5#
Spindle speed range  r/min 16-1250 16-1250
Spindle speed series  – 16 16
Spindle feed range mm/r 0.06-1 0.06-1
Spindle feed level  – 9 9
Horizontal movement distance of head stock  mm 750 750
main motor power KW 3 4
Sleeve lifting distance  mm 900 900
Tilt of head stock  – ± 90° ± 90°
Slide moving distance  mm 2000 2000
Machine weight  kg 7200 7200
Machine size  mm 4350×1710×3143 4350×1710×3143
