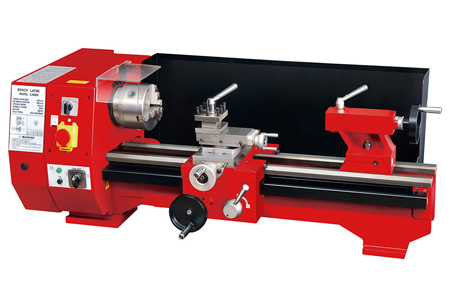

C6 Bench Lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Swing over bed | 250 mm |
| Distance between centers | 400 mm |
| Model 550 | 550 mm |
| Hole through spindle | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Spindle speed(6 step) | 125-2000 rpm |
| Compound travel | 75 mm |
| Cross slide travel | 110 mm |
| Motor output power | 550 W |
| Thread of range Metric version | 0.4-3.0 mm (12 threads pitches) |
| Imperial version | 10-44 TPI ( 8 threads pitches) |
| Overall dimension (LxWxH)Model 400 | 1040x600x450 mm |
| Model 550 | 1140x600x450 mm |
| Weight (Net/Gross) Model 400 | 125/160 kg |
| Model 550 | 145/180 kg |
| Packing size (LxWxH) Model 400 | 1070x640x580 mm |
| Model 550 | 1170x640x580 mm |
Product Description:
• Near silent running
• Integral splash guard
• Metric and Imperial thread cutting

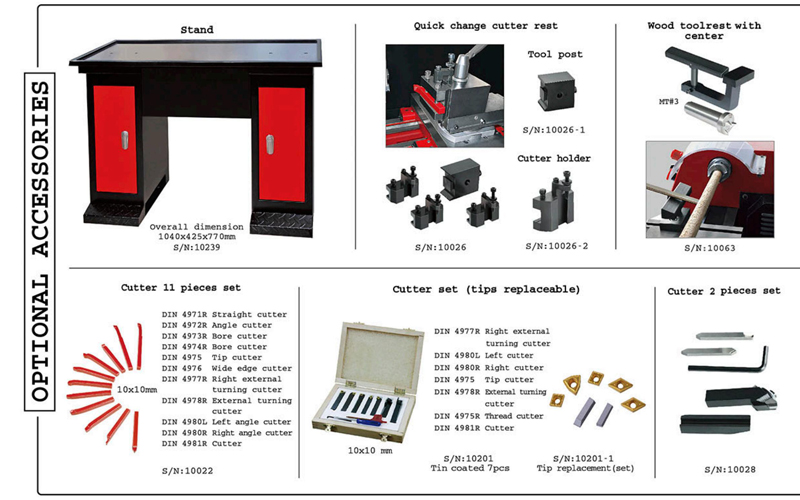

• Full range of accessories available
• Converts to a multi-purpose machine with the milling attachme
• Medium capacity, high quality lathe suitable for workshop or school use
