Horizontal Band Saws

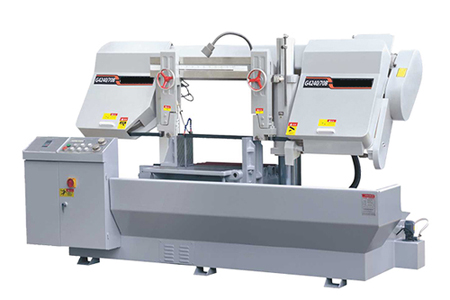

Double column horizontal metal band sawing machine(G4240/70B)

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Mainly used for sawing various ferrous and non-ferrous metals;

The machine tool has reasonable structure, stable and reliable performance, and high precision. It is an ideal equipment for small and medium batch blanking.

Product description

● Double column structure;

● Hydraulic vice clamp;

● The guide block has reasonable structure, ensures the correct orientation of the guide block, prolongs the service life of the saw blade, and has high accuracy

● Hydraulic control sawing feed

● Automatic and hydraulic tensioning saw can be customized according to requirements;

● Optional cutting speed control with frequency conversion

Sawing Capacity (mm) Round material: Ø400 mm
Square material: 700w x 400h
Band saw wire speed (m/min) 16 / 25 / 42 / 55 / 67
Band saw wire specifications (mm) 41 x 1.3 x 5080 Main motor power (kw) 4 (6p)
Hydraulic motor (kw) 0.75 Cooling pump (kw) 0.06
Work clamping method Hydraulic vice Saw blade tensioning method Manual
Main drive structure Worm gear drive Feeding mode Auxiliary mixing
Overall size (mm) 2700 x 1200 x 1750 Height of worktable (mm) 675
