The pipe bending machine is mainly used for bending steel pipes in electric power construction, boilers, bridges, ships, furniture, decoration, etc., and has the advantages of many functions, reasonable structure, and simple operation.
Recently, the Shanghai ANTS team received a consultation from a pipe processing company in Panama. The customer is looking for a pipe bending machine that can meet the processing needs of a variety of different pipe sizes at the same time, and provided detailed drawings and information.Customers need to bend 7 different sizes of pipes, of which the maximum diameter is 48mm and the thickness is 3mm.

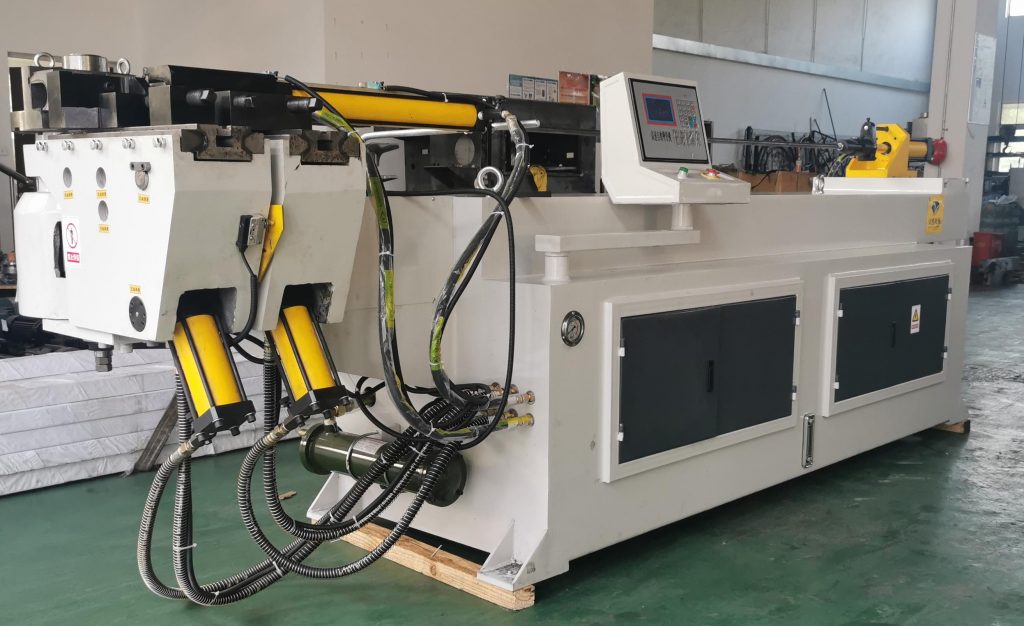

After our technical confirmation, we recommended the customer DW-63NC single-head hydraulic pipe bender. This equipment can meet all the processing needs of customers at the same time, and only need to replace different molds to use, which greatly saves the cost of customer equipment, improves the efficiency of customer use, and brings greater benefits to customers.
| Main specifications | Unit | DW63NC |
| Max. bending diameter x Wall thickness | mm | Φ63×2 |
| Max. bending radius | mm | R300 |
| Mini. bending radius | mm | R≥1.5D |
| Max. bending Angle | Degree | 190 |
| Standard core length | mm | 2600 |
| Control system | / | Microcomputer control |
| Number of elbow allowed for pipe fitting | Unit | 16 |
| Number of parts that can be stored | Unit | 16×16 |
| Oil motor power | KW | 7.5 |
| Max system pressure | Mpa | 12 |
| Hydraulic system control | Solenoid valve | |
| Tank volume | L | 220 |
| Machine dimensions | mm | 3300×1000×1300 |
| Machine weight | Kg | 1300 |
If you are also a manufacturer of pipe projects, or have similar processing needs,
Welcome to consult Shanghai ANTS Machine Equipment Company Sales Team.We have rich experience in the manufacture and production of pipe bends, and can provide you with professional technical support.
Tags: Pipe bending machine,tube bending machine,Pipe processing, single-head hydraulic pipe bender.
