TECHNICAL SPECIFICATIONS | ||||

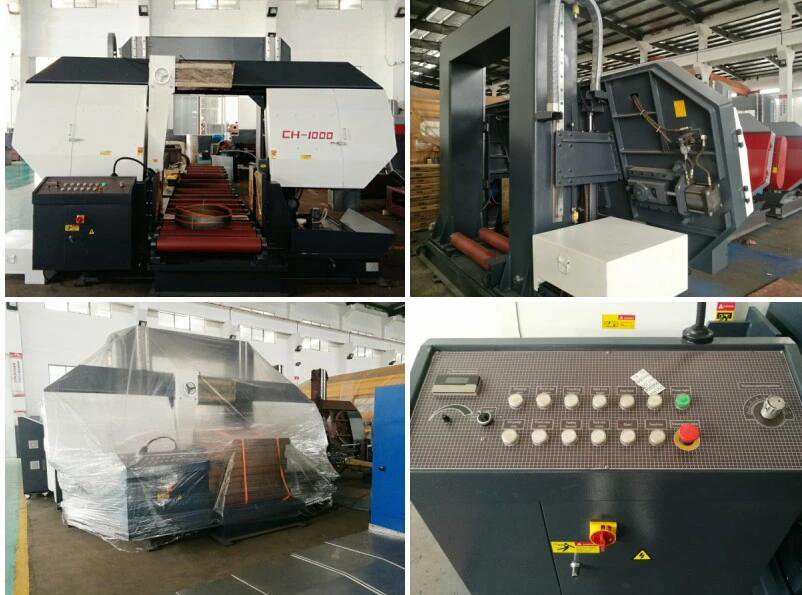

MODEL | CH-1000 | |||
Cutting Capacity | 0° | round | φ1000mm | φ39-3/8″ |
0° | square | 1000mm W x 1000mm H | 39-3/8″ W x 39-3/8″ H | |
Drive Capacity | Main Motor | 11KW (4P) | ||
Hydraulic Motor | 3.75KW | |||
Coolant Pump | 0.09KW | |||
Blade Speed | 15~60m/min by Inverter | 49~197fpm by Inverter | ||
Blade Size | 67×1.6x9820mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Hydraulic | |||
Main Drive | Gear Reducer | |||
Table Height | 520mm | |||
Weight | ||||
Machine Size (LxWxH) | 4560x2170x3040mm | 179-1/2″x85-2/5″x119-2/3″ |
