The main components of G5325 vertical band sawing machine are: bed, inner and outer table, saw frame, motion mechanism, guide device, feeding system, electrical system, workpiece clamping, band saw blade tensioning device, material carrier, lubrication and cooling system, etc.
The frame structure of the bed is welded by the base, the end plate and the side plate. There is a large space inside the bed, and the saw frame moves left and right in the cavity to hold the cooling cutting fluid. For steel plate and channel welded parts. On the base, the precision linear guide rails are installed on the left side, and the plane guide rails and rollers are installed on the right side: the saw frame is connected with the rollers and the linear guide rails. The bed is equipped with a cooling system and a coolant pool.
Workbench: It consists of inner and outer workbenches. T-slot irons are installed on the inner and outer work surfaces to support the T-slot screws to fix the workpiece. The flatness tolerance of the upper surface of the inner and outer worktables is 0.1-0.8mm. The inner and outer worktables are fixed on the bed with screws. When replacing the band saw blade, remove the bolts of the inner table and jack up the table. When the band saw blade is replaced, remove the jack and fix it with bolts; and check and level the flatness of the upper plane of the inner and outer workbenches.

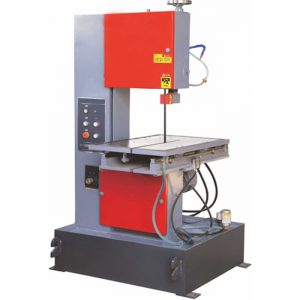

G5325 Vertical band sawing machine is a type of band sawing machine. This machine tool can not only cut various metal materials and various alloy materials, but also can cut plastic, leather, wood, rubber and other materials, and can also complete difficult angle cutting. It is a very practical band sawing machine for cutting various shapes. When it comes to band sawing machines, we all know that the cutting and cutting work of vertical band sawing machines is inseparable from the saw belt. All the work of vertical band sawing machines is done through different specifications.
The saw belt is used to cut workpieces of various materials, which also shows the importance of various saw belts for G5325 vertical band sawing machines.
The application fields of G5325 vertical band sawing machines are really very extensive. Basically, any machining industry needs to cut and cut the workpiece, which requires the use of vertical band sawing machines, which greatly increases the use of vertical band sawing machines. The main components of vertical band sawing machine products are: metal band sawing machine bed, inner table and outer table, saw frame, guide device, motion mechanism, feeding system components, electrical system components, workpiece clamping device, belt Saw blade tensioning device, material carrier, lubrication system and cooling system, etc. These components constitute a vertical band sawing machine. These components are all important components of a vertical band sawing machine. They are indispensable. The quality of these components also directly affects the quality of the vertical band sawing machine. These components also directly explain The product features of the vertical band sawing machine.
