Z5140 vertical drilling machine
– Drilling diameter: Maximum drilling diameter is 40mm.
– Spindle speed: Range is 31.5-1400 rpm (12 levels).
– Spindle feed per revolution: 0.056-1.80mm/rev (9 levels).
– Spindle stroke: 250mm.
– Spindle box stroke: 200mm.
– Worktable stroke (manual): 300mm.
– Distance from spindle end face to worktable: 750mm.
– Worktable size: 480×560mm.
– Machine weight: 1250kg.
– Overall dimensions: 1090×900×2530mm.

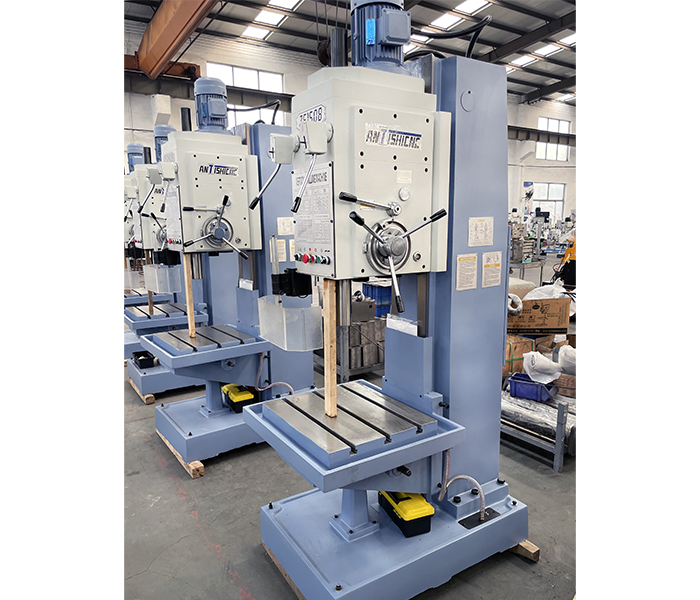

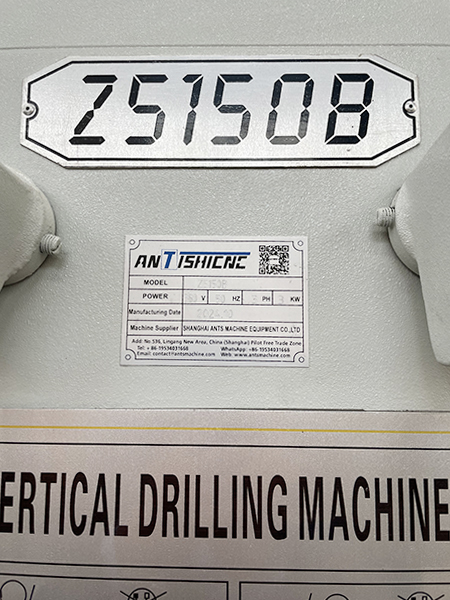

Z5150 vertical drilling machine
– Drilling diameter: Maximum drilling diameter is 50mm.
– Spindle feed resistance: 16000N.
– Spindle torque: 350N.m.
– Main motor power: 3kW.
– Main taper taper: NO.5.
– Spindle speed: range of 31.5-1400 rpm (12 levels).
– Spindle feed per revolution: 0.056-1.80mm/rev (9 levels).
– Spindle stroke: 250mm.
– Spindle box stroke: 200mm.
– Spindle span: 335mm.
– Worktable stroke (manual): 300mm.
– Distance from spindle end face to worktable: 750mm.
– Worktable size: 480×560mm.
– Machine weight: 1250/1350kg.
– Overall dimensions: 1090×900×2530mm.
 |
 |
This information provides the main technical parameters and features of the Z5140 and Z5150 vertical drilling machines produced by Shanghai Ants Machine Equipment Co., Ltd., which can be used to compare and select machine tools suitable for specific processing needs.
If you need to purchase or inquire about ordinary drilling machines, vertical drilling machines, radial drilling machines, CNC drilling machines, drilling and milling machines and other machine tool products; please contact Ants’ sales staff at contact@antsmachine.com
The website is: www.antsmachine.com
