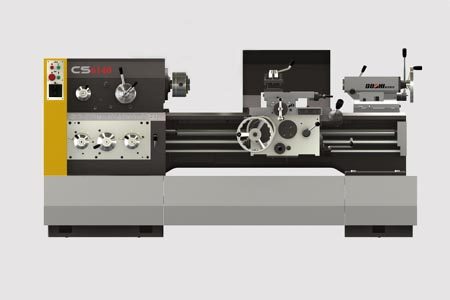

Introduction
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
|
ITEMS |
UNIT |
CS6140C |
CS6240C | |
|
Capacity |
Max. swing dia. over bed |
mm |
φ400 |
|
| Max. swing dia. over toolpost |
mm |
φ220 |
||
| Max. swing dia. in gap |
mm |
|
φ630 |
|
| Length in gap |
mm |
|
240 |
|
| Max. distance between centers |
mm |
750/1000/1500/2000//3000 |
||
| Max. machining length |
mm |
700/950/1450/1950/2950 |
||
|
Spindle |
Spindle Bore |
mm |
φ105 |
|
| Taper of spindle bore |
|
φ113 1:20 |
||
| Type of spindle nose |
|
ISO 702/Ⅱ No.8 Cam-locking type |
||
| Spindle speed |
r/min |
12 steps 36-1600 |
||
|
Feed and thread |
Max. travel of upper toolpost |
mm |
145 |
|
| Max. travel of lower toolpost |
mm |
320 |
||
| Tool section |
mm |
25×25 |
||
| X-axis feeding range |
mm/r |
65kinds 0.027-1.07 |
||
| Z-axis feeding range |
mm/r |
65kinds 0.063-2.52 |
||
| Metric threads |
mm |
22 kinds 1-14 |
||
| Inch threads |
t.p.i |
25 kinds 2-28 |
||
| Module threads |
πmm |
18 kinds 0.5-7 |
||
| Diametric pitch threads |
t.p.i.π |
24 kinds 4-56 |
||
|
Tailstock |
Diameter of quill |
mm |
φ75 |
|
| Max. travel of quill |
mm |
150 |
||
| Taper of quill (Morse) |
|
Morse No.5 |
||
|
Motor |
Main motor power |
kW |
7.5 |
|
| Cooling pump motor power |
kW |
0.12 |
||
|
Others |
Length |
mm |
2382/2632/3132/3632/4632 |
|
| Width |
mm |
975 |
||
| Height |
mm |
1270 |
||
| Weight |
kg |
2050/2100/2300/2500/2900 |
||
