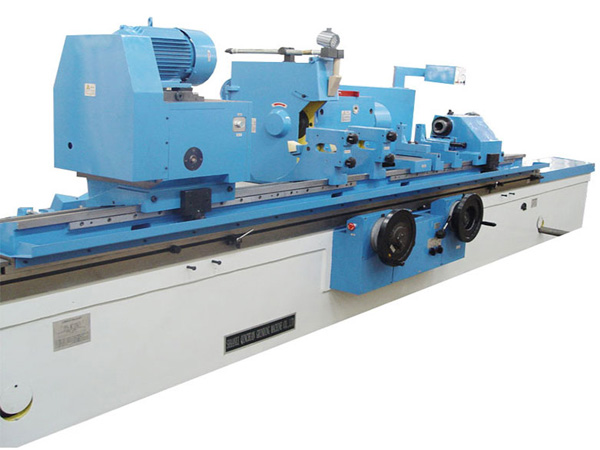

Introduction of Cylindrical Grinder Grinding Machine
The machine is designed and manufactured for grinding cylindrical or conical external surfaces with accuracy of IT5 and IT6.
The longitudinal travel of worktable is controlled steplessly by hydraulic system, and also by hand wheel. The rapid approach and withdrawal of wheel head is hydraulic controlled, infeed is carried out by hydraulic and handwheel.
| TECHNICAL SPECIFICATION | ||||||||||
| Specification(mm) | Packing size (mm) | Net weight(kg) | Gross weight(kg) | |||||||
| L | W | H | ||||||||
| 500×1500 | 5650 | 2400 | 2120 | 8000 | 9500 | |||||
| 500×2000 | 5650 | 2400 | 2120 | 9000 | 10500 | |||||
| 500×3000 | 7500 | 2400 | 2110 | 11000 | 13000 | |||||
| Grind
ing dia |
With steady rest | mm | Max | 200 | ||||||
| mm | Min | 30 | ||||||||
| Without steady rest | mm | Max | 500 | |||||||
| mm | Min | 30 | ||||||||
| Max. workpiece weight | kg | 1000 | ||||||||
| Center high | mm | 270 | ||||||||
| Distance between centers | mm | 1500 | ( ME1350×1500 ) | |||||||
| mm | 2000 | ( ME1350×2000 ) | ||||||||
| mm | 3000 | ( ME1350×3000 ) | ||||||||
| Max. longitudinal travel of worktable | mm | 1600 | ( ME1350×1500 ) | |||||||
| mm | 2090 | ( ME1350×2000 ) | ||||||||
| mm | 3090 | ( ME1350×3000 ) | ||||||||
| wheelstock | Wheel speed | m/s | 35 | |||||||
| Spindle speed | r/min | 892 | ||||||||
| Rapid approach/withdrawal | mm | 100 | ||||||||
| Max. movement | mm | 410 | ||||||||
| Grinding wheel | Max | mm | 750×75×305 | |||||||
| Min | mm | 535×75×305 | ||||||||
| Workstock center | Morse | M6 | ||||||||
| Tailstock center | Morse | M6 | ||||||||
| Motor of wheelstock | KW | 15 | ||||||||
| Total power of motors | KW | 19.85 | ||||||||
| GENERAL FEATURE | ||||||||||
| Movement of sleeve of tailstock | 70 | Min.manual | 0.0025 | |||||||
| Auto-periodic feed | Yes | Wheel dressing and compensation | Manual | |||||||
| WORKING ACCURACY | ||||||||||
| Roundness | mm | 0.0025 | ||||||||
| Uniformity of diameter in longitudinal section | mm | 0.008 | ||||||||
| Roughness | μm | Ra0.2 | ||||||||
