Double column PLC bandsaw CNC band sawing machine

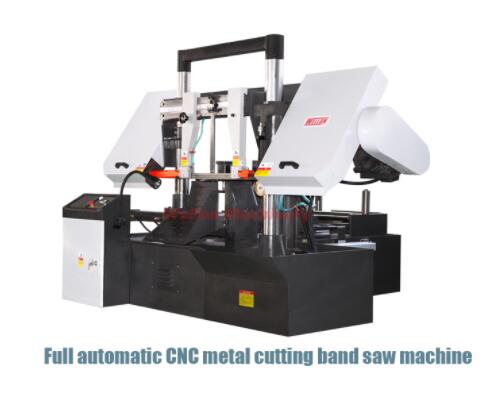

Full automatic CNC metal cutting band saw machine

Extremely rigid dual-column cast-iron construction
PLC control for a fully automated sawing process
Easy to use touchscreen monitor for easy and quick recording of saw parameters
Hydraulic tool clamping included with standard equipment
The feed unit’s linear measuring system ensures long-term maximum accuracy
Feed of the torsion-proof saw frame is infinitely variable via a hydraulic throttle valve
Extra rigid, adjustable saw blade guide
Hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment

Model GHS4228 GHS4230 GHS4235
Max.cutting capacity (mm)  280-280×280 300-300×300 350-350×350
Saw blade speed (m/min) 27,45,69 27,45,69 27,45,69
Feed rate adjustment Hydraulic stepless Hydraulic stepless Hydraulic stepless
Saw blade size (mm)     27×0.9×3505     27×0.9×3505     34×1.1×4115
Main motor (kw) 3 3 4
Hydraulic motor (kw) 0.75 0.75 0.75
Cooling motor power (kw) 0.04 0.04 0.04
One time feed length (mm) 500 500 500
Feed accuracy (mm) ±0.20 ±0.20 ±0.20
Main transmission structure Worm gear transmission
Saw blade tension method Manual
Working clamping mode Hydraulic vice
Cleaning wire brush & flood coolant
Dimensions(mm) 2370*1800*1500 2370*1900*1550

2300*2000*1700
