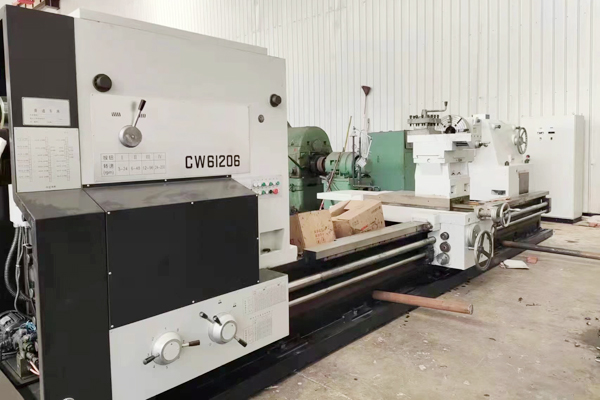

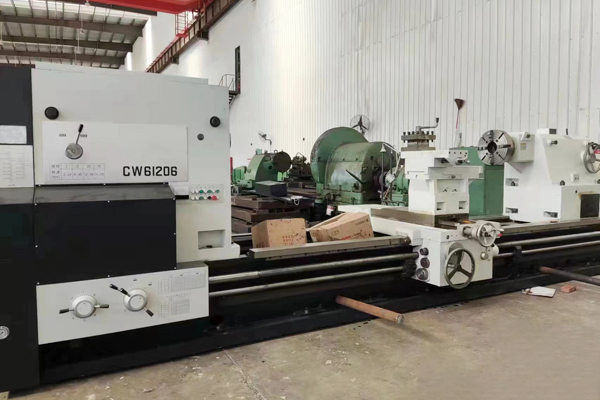

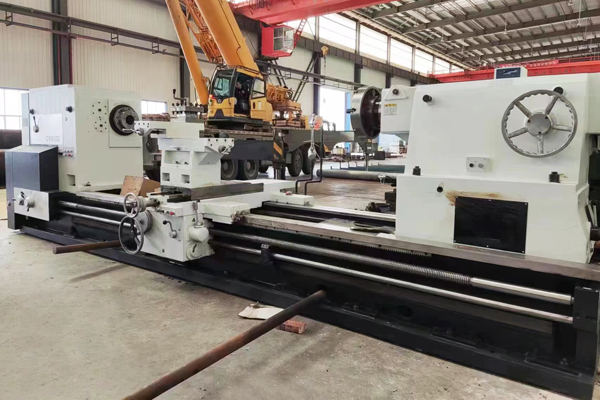

Specifications | CW61206*5000(20T) |
Capacity | |
Max.swing over bed | 2060mm |
Max swing over cross slid | 1560mm |
Distance between centers | 3m,4m,5m,6m,8m,10m,12m |
Width of bed | 1180mm(Rectangular rail) |
Max.weigth of workpiece | 20T |
Head Stock | |
Spindle hole | φ105mm |
Spindle taper | φ140mm Taper1:7 |
Spindle speeds | (3-24;6-48;12-96;24-200)/Hydraulic 4-speed continuously variable transmission |
Gear Box-Threads&Feeds | |
Metric threads range(pitch) | 1-60mn |
Inch threads range(inch) | 1/2-30 |
Longitudinal feeds range | 0.1-6mm/Spindle per revolution |
Cross feed range | 0.05-3mm/Spindle per revolution |
Rapid feed:long/cross | 3400mm/min,1700mm/min |
Tool-Post | |
Tool section | 45×45mm |
Carriage | |
Cross slide travel | 800mm |
Compound rest travel | 280mm |
Tailstock | |
Sleeve diameter | φ280mm(with built-in small spindle) |
Sleeve taper | φ100 Taper 1:7 |
Sleeve travel | 300mm |
Steady Rest | |
Close-type steady rest | φ250-600mm |
Open-type steady rest(optional) | φ550-1200mm |
Motor | |
Main motor | 55KW(direct-current) |
Rapid feed motor | 1.5KW |
Tailstock motor | 1.5 KW |
Bedside box hydraulic variable pump motor | 1.1KW(1500r/min) |
Cooling motor | 0.45KW(1500r/min) |
Tailstock motor | 1.5 kw |
Other Information | |
Center distance | 5000 |
Net weight(kg) | 25500KG |
Machine Size ((L*W*H) | 10150*2200*1850mm |
Product Details
This machine tool is a universal general-purpose lathe, which is suitable for high-speed steel and hard alloy steel tools for turning outer circles, end faces, grooving, cutting, and boring of shaft parts, cylindrical and disc-shaped parts of different materials. Turn boring inner cone.
The upper turret can turn short cones motorized, and the compound movement of longitudinal feed and upper turret feed can turn long cones motorized. The surface of the bed guide rail is quenched to improve the life of the guide rail. The control handles of the lathe are centralized and easy to use. flexible.
List of main accessories
No. | Name | Specifications | Application |
1 | Precision Bearings | NN3052K P5/2344 52M P5 | Spindle Front |
2 | Precision Bearings | N1040M P5 | Spindle rear end |
3 | Precision Bearings | D832130 | Tailstock spindle front end |
4 | Precision Bearings | D832126/51418 | Rear end of tailstock spindle |
5 | Precision Bearings | NN3044 P5 | Spindle intermediate bearing |
6 | Main motor | Z4-280-31B55KW | Spindle drive |
7 | Feed fast motor | Y90L-4 | Feed rate |
8 | Sleeve motor | Y90S-4 | Socket movement |
9 | Tailstock motor | Y90L-4 | Tailstock movement |
10 | Pressure gauge | (Y)561III | Tailstock force measurement |
Standard Equipment
Name | Specifications | Quantity |
Chuck | Φ1400mm | 1 set |
Center frame | φ250-φ600 | 2 set |
Mechanical booster jaw | / | 4 pcs |
Hand tools for adjusting and operating machine tools | / | 1 set |
Pad iron and anchor screws, etc. | / | 1 set |
