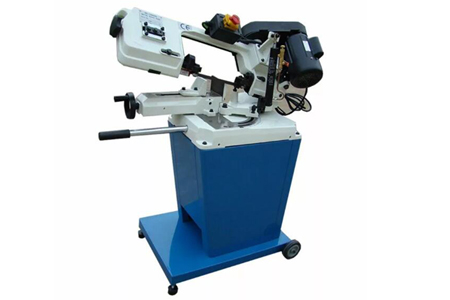

    • Horizontal Mitre Band Saw Machine BS-128HDR

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Model BS-128HDR
    Circular @90° 128mm(5”)
    Rectangular @90° 128x150mm(5”x6”)
    Circular @60° 44mm(1.75”)
    Rectangular @60° 44x56mm(1.75”x2.19”)
    Circular @45° 95mm(3.75”)
    Rectangular @45° 75x95mm(3”x3.7”)
    Blade speed @ 50Hz 24,35,61MPM
    Blade speed @ 60Hz 20,29,50MPM
    Blade size 13×0.6x1638mm
    Motor power 375W 1/2HP(3PH), 375W 1/2HP(1PH)
    Drive V-belt
    Packing size 96x54x61cm
    N.W./G.W. 85/105kg

    Features:
    1. Cut up to 5” round at 90°
    2. Saw bow miters 60°left and 45°right
    3. Belt drive, 3 cutting speed for different material
    4. Stop rod help you to make repeatable cuts
    5. Single phase motor suitable for home use
    6. Adjustable blade guide move as close as possible to the material to produce accurate cut
    7. Hydraulic descent, speed adjustable

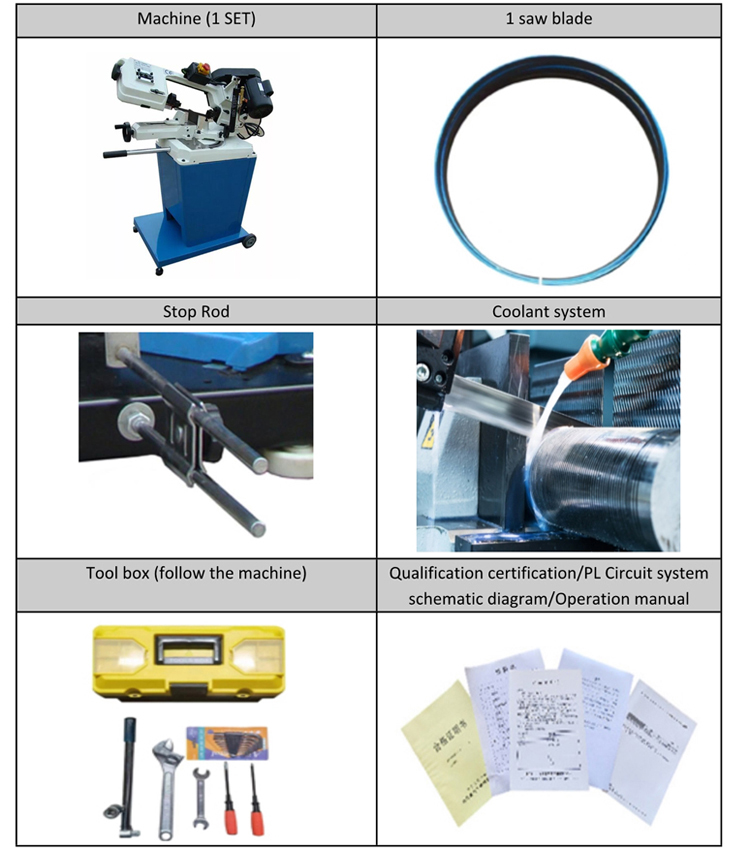

    Standard Equipment
