It is not uncommon to use CNC lathe machine to process single-joint or double-joint ball valves, but special processes are required when processing 3-joint ball valves or multi-joint ball valves. As we all know, the opening and closing parts of the ball valve are spheres with circular channels, which are perpendicular to the channels. The axis rotates, and the ball rotates with the valve stem to achieve the purpose of opening and closing the channel. Such as electric ball valve, pneumatic ball valve, hydraulic ball valve and so on. , Shanghai ANTISHICNC engineer will explain to you how to process this type of ball valve with our CNC lathe:

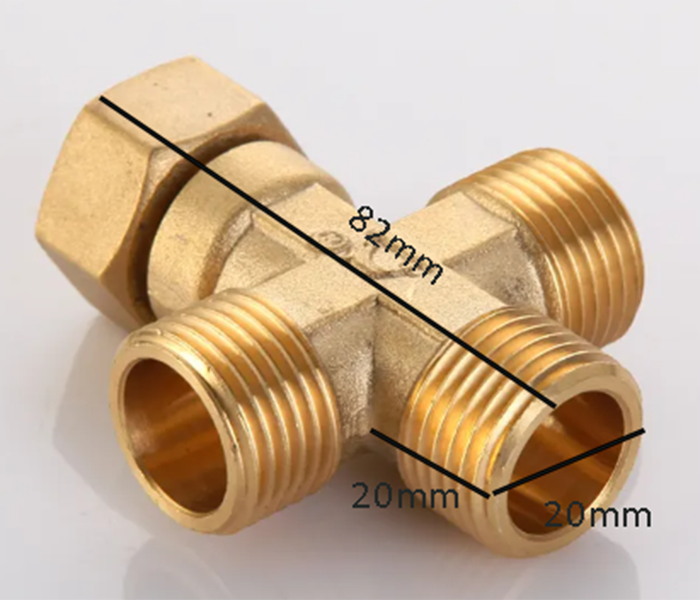

As shown in the picture above, this is a typical four-joint through-body ball valve. According to the maximum diameter and length of the ball valve processed, Shanghai ANTISHICNC engineers match the CK6150 CNC flat body lathe for the customer. The maximum processing diameter of the CNC lathe is 500mm, and the through hole diameter is 82mm, this CNC lathe is suitable for processing single-joint and double-joint ball valve external threads, internal threads, turning ball valve outer circles, and arbitrary ball valve cone angles.
However, if you are processing multi-head ball valves, you also need to install a rotary indexing chuck. The angle of ball valve processing is usually fixed. As shown in the figure, the rotation angle of the ball valve is 90°. When the ball valve is divided into a specific angle, Our engineer ensures that the positioning claw is aligned with the working axis and the chuck is tightened with screws. Precision cutting, drilling, threading and other processes finally produce a four-joint ball valve.
For more information on ball valve processing, please contact Shanghai ANTISHICNC Team. We provide customers with timely technical support, training and spare parts supply!
