With the continuous improvement of industrial technology, various mechanical equipment is also more and more used in the production and processing process. Among them, the automatic pipe bending machine is a very common metal processing equipment, which can bend metal pipes to meet various production needs. Especially for the stainless steel pipe processing industry, the automatic pipe bending machine has played an irreplaceable role.
For stainless steel pipe processing, the perfect bending effect is very important. Due to the hardness of stainless steel materials, deformation, warping, wrinkling and other problems will inevitably occur. The automatic pipe bending machine can be controlled by reasonable mold design and computer to ensure the consistency and accuracy of the bending effect. Therefore, it is widely used in the field of stainless steel pipe fitting processing, and has been praised and favored by the majority of users.

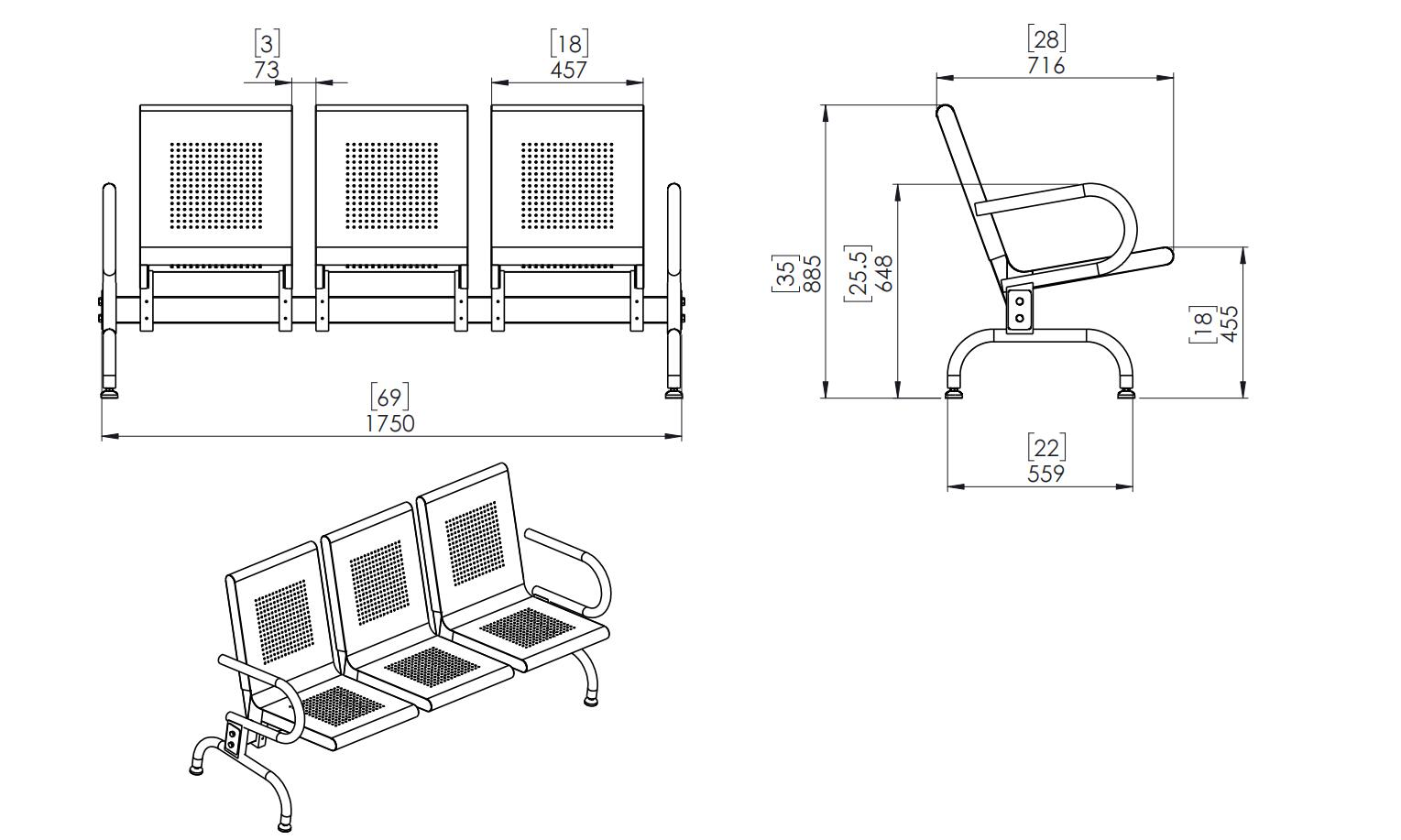

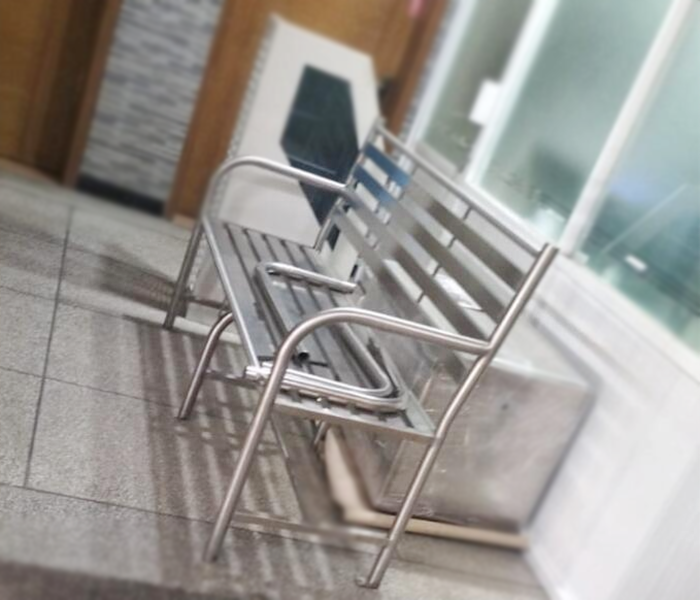

Recently, the Shanghai ANTS team received a consultation from a manufacturer of stainless steel chair with hand rests.
Customer pipe requirements are:
1.Pipe diameter is 1/2″ = 12.7mm; 3/4″ = 19.05 mm; 1″ = 25.4 mm
1×1/4″ = 31.75mm; 1×1/2″ = 38.1mm; 2″ = 50.8mm; 2.5″ = 63.5 mm; 3″ = 76.2mm
2.The wall thickness is 1mm to 2mm
3.Material is stainless steel

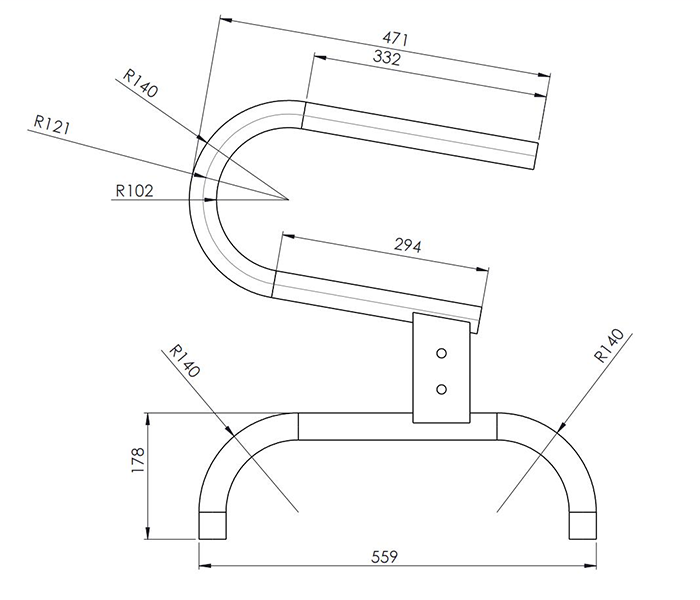

4.The bending radius is 2.5 D of its diameter
5.Maximum feeding length is 3 meters

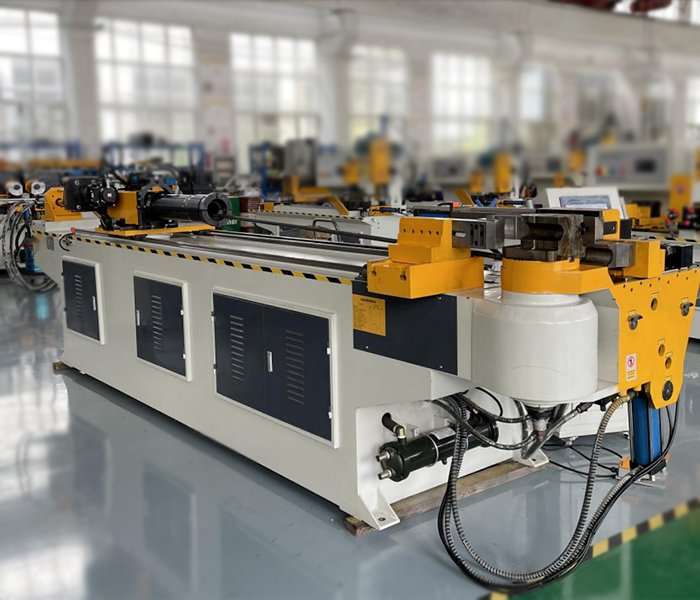

For these technical details, I will recommend the automatic pipe bending machine (including 7 corresponding molds) that best meets the customer’s requirements.
| Technical Specifications | DW89CNC-2A1S |
| Maximum bending capacity 1.5D stainless | Φ80×2mm |
| Maximum bending capacity 1.5D carbon steel | Φ89×3mm |
| Maximum feeding distance (b) | 3500mm (standard); Can be customized lengthened |
| Feeding mode | Send straight or clip |
| Maximum bending radius | R320mm |
| Maximum bending Angle | 190° |
| The number of bending files can be set | 300 |
| Bending speed | MAX60°/s |
| Spinning speed | MAX100°/s |
| Feed speed | MAX500mm/s |
| Bending Angle | ±0.15° |
| Swivel Angle | ±0.1° |
| Feed length | ±0.1° |
| Rotating tube servo motor | 1KW |
| Feed servo motor | 2KW |
| Bending way | Cylinder bent pipe |
| Machine dimensions | ≈6000x1250x1100mm |
If you are also a manufacturer of stainless steel chair with hand rests, or have similar processing needs, welcome to consult Shanghai ANTS. We have rich experience in the manufacture and application of pipe bending machine, and can provide you with professional technical support.
For more pipe bending machine equipment, please visit: round-bending-machine
or send email to contact@antsmachine.com.
Our company engineers will give you a very perfect bending solution.
