Equipment Introduction

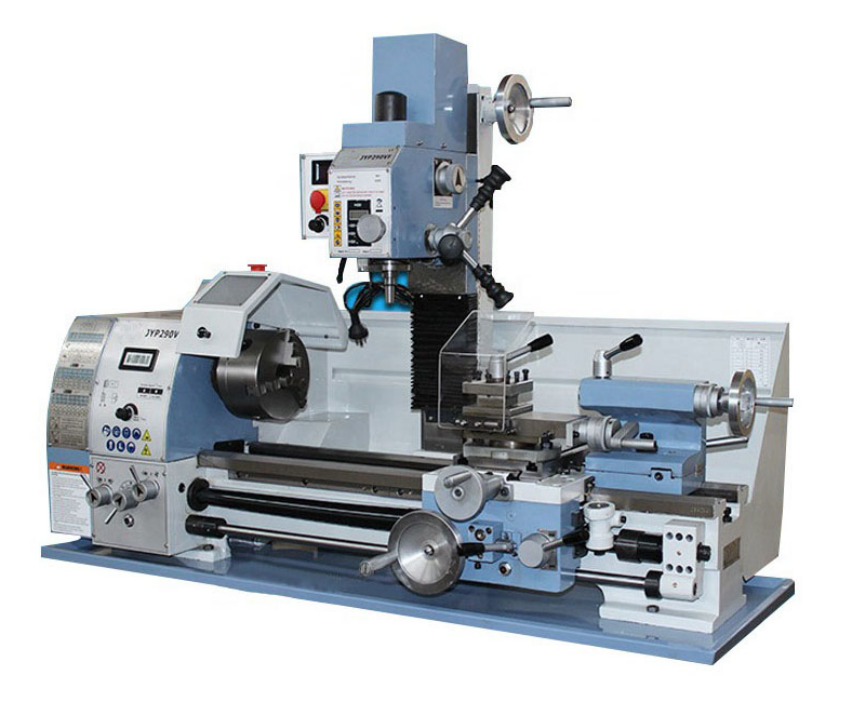

JYP series turning, drilling and milling is very convenient in the process of use and operation. The overall processing strength of the supporting equipment is relatively high, and the processing efficiency is also high. It can improve work efficiency in a short time, and can also be used in a certain The cost is greatly controlled in the scope, and at the same time, the waste of resources can be avoided. The functionality is relatively complete, and it can achieve the purpose of automatic production when processing parts. At the same time, it can process various precision parts and meet the needs of different body processing. JYP series turning, drilling and milling machine tools give us Brings a better functional experience.
Technical Parameter
MODEL | JYP290VF | JYP300VF |
Distance between centers | 700 mm | 750MM |
Swing over bed | 280 mm | 300MM |
Swing over cross slide | 180 mm | 175MM |
Spindle bore | 38 mm | 38MM |
Taper of spindle bore | MT5 | MT5 |
Gear shift | DC stepless speed change / frequency conversion speed regulation | Stepless speed regulation (brushless motor) |
Taper of spindle bore | 50-1800 rpm | 30-3000rpm |
Turning Inch Thread Range | 0.2-3.5MM 18 type | 8- 56 1/n” |
Turning Metric Thread Range | 8- 56TPI 21 type | 0.2-3.5MM |
Large pallet cutting speed | 0.02-0.28 mm/r | 0.017-0.12mm/r |
Middle carriage cutting speed | 0.07-0.40 mm/r | 0.07-0.65mm/r |
Middle carriage stroke | 140 mm | 140 mm |
Tailstock sleeve stroke | 94 mm | 94MM |
Tailstock taper | MT3 | MT3 |
Packing size | 1400X750X1010 mm | 1400X750X1010mm |
Net weight | 280/321 kg | 320KG/360KG |
Mill & drill | ||
Maximum drilling capacity | 20 mm | 25MM |
Maximum end milling capacity | 16 mm | 16 mm |
Maximum face milling capacity | 63mm | 63MM |
Spindle stroke | 50 mm | 50MM |
T-slot width | 10 mm | 10MM |
Spindle speed | 50-2250 RPM | 50-2250rpm |
Motor Power | 0.6 KW | 1.5kw |
