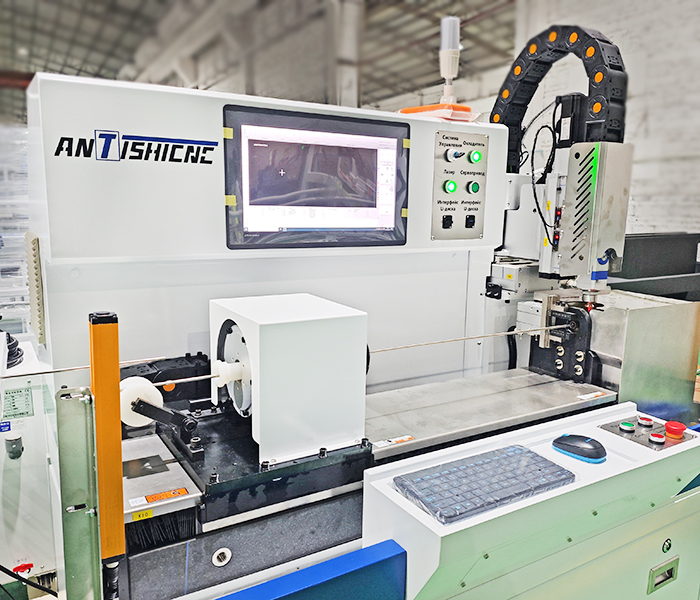

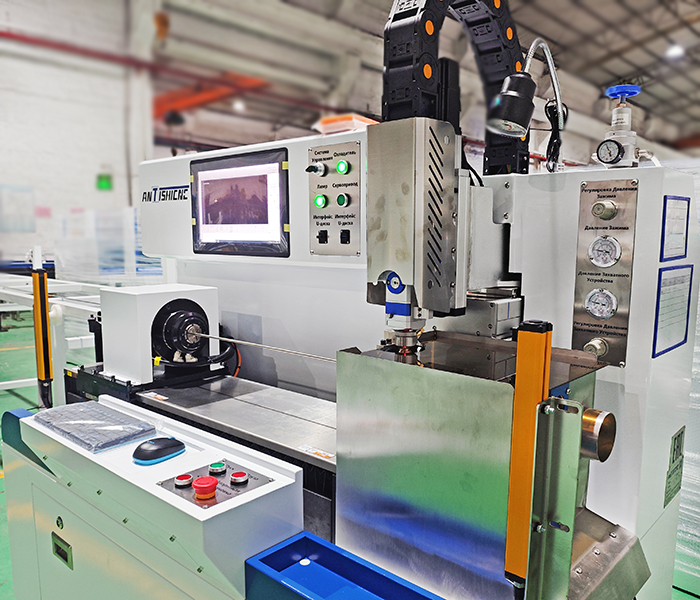

LXLASER-K3S small tubes precision Laser Cutting Machine

Introduction of Laser Cutting Machine

1.High strength bed, fast speed, good stability
2.Short tail material: ≥115mm
3.Cutting single pipe, single clamping can complete the whole cutting, cutting length can not be limited by the length of moving parts
4.The equipment interpolation axis adopts linear motor direct drive, fast speed and good stability.
5.Support cutting pipe diameter range: ∅1.5mm-25mm (negative tolerance)
6.Self-developed feeding system. The equipment is equipped with simple detachable material rack, easy transportation, simple and practical.

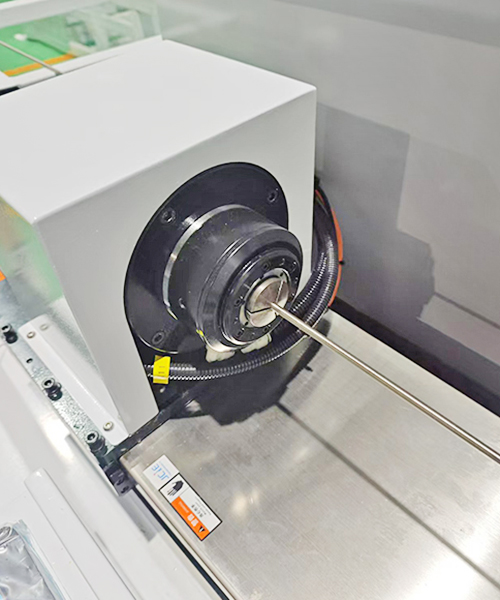

7.High precision chuck. The chuck adopts hollow rotary pneumatic chuck, this kind of chuck speed up to 500 rpm, clamping response time is fast, because the use of equal pipe diameter chuck, so will not be clamped flowers clamping injury pipe surface. After professional training, qualified personnel, different specifications need to replace the corresponding specifications of the chuck, replacement time of 3 minutes.

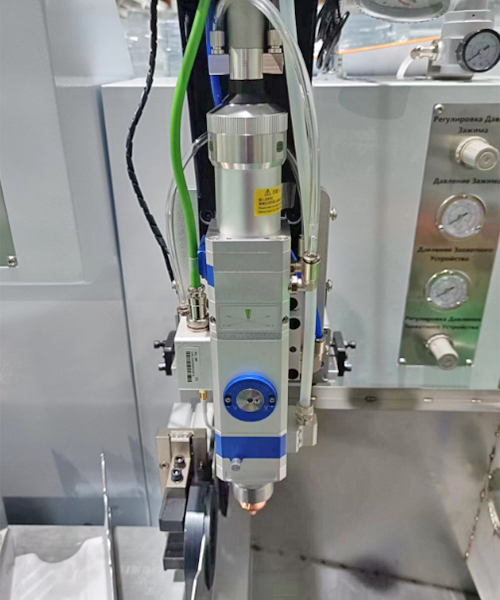

8.(1)Fiber-specific three-dimensional laser cutting head:
The equipment adopts BT series fiber-specific laser cutting head, with capacitive non-contact automatic tracking system, which can adjust the optimal focal length to ensure the best overall cutting effect, even if the material surface is uneven can still ensure the cutting quality, the cut seam is flat and beautiful;
High-speed capacitive sensing cutting distance as low as 0.2mm, improving cutting performance and reducing gas consumption. As the cutting head is equipped with non-contact sensing device, under the control of the system, it is able to realize stable Z-axis floating function, which directly eliminates the effect of uneven pipe on cutting quality, and makes the laser cutting machine have a high cutting yield.
(2)Industry first-class fiber laser:
Our fiber laser cutting machines all use the industry’s first-class level of laser, its performance is stable, the service life of key components can reach 100,000 hours, the overall quality of the equipment to get a safety guarantee. The laser can produce excellent beam quality, cutting lines more fine, higher efficiency and better processing quality.
Fully enclosed constant temperature laser working environment, more effective to ensure the stability of the laser work.
Red light indication: fiber laser cutting machine with red light collimator, which can help the operator to calibrate the laser cutting head in any position on the tube.
(3)Excellent transmission system:
The equipment adopts direct drive power system, equipped with automatic lubrication device to ensure the stability of service life.

Technical parameter

Machine Configuration

Remark：Specific configuration according to the series configuration list brand for customers to choose, no special requirements specified, the specific brand in kind shall prevail.
