Hydraulic press machine hydraulic transmission is a kind of transmission method that uses hydraulic principle to realize power transmission and control. It transmits pressure and movement through the liquid medium in the hydraulic system, thus driving the various actuating elements of the hydraulic press machine to complete the intended action. So what are the advantages of hydraulic transmission of hydraulic press machine?
1. In the same volume, the hydraulic device can produce more power than the electrical device, because the pressure in the hydraulic system can be 30-40 times greater than the magnetic force in the magnetic field of the armature. For the same amount of power, hydraulic units are small, lightweight and compact. The volume and weight of the hydraulic motor is only about 10% to 12% of the same power of the roaring machine.
2.The hydraulic device works more smoothly. Because of the light weight, small inertia, fast response ‘hydraulic device is easy to realize the fast start, braking and frequent direction change. Hydraulic device reversal frequency, in the realization of reciprocating rotary motion up to 500 times / min, the realization of reciprocating linear motion up to 1000 times / min.
3.Hydraulic device can realize stepless speed regulation in a wide range, it can also be in the process of operation speed regulation.
4.Hydraulic transmission is easy to automate, this is because it is easy to regulate or control the liquid pressure, flow or flow direction. When the hydraulic control and electrical control, electronic control or pneumatic control when used in combination, the whole transmission device can cold appear very complex sequence of action, accept remote control.
5.Hydraulic device is easy to realize the overload protection. Hydraulic cylinders and hydraulic motors can work for a long time in a stalled state without overheating, which is the electrical transmission devices and mechanical transmission devices can not do. Hydraulic parts can be self-lubricating, long service life.
6.As the hydraulic components have been standardized, serialized and generalized, the design, manufacture and use of hydraulic systems are more convenient. Arrangement of hydraulic components also has a greater mobility.
7.Hydraulic transmission to realize linear motion is far simpler than mechanical transmission.
In short, hydraulic press machine hydraulic transmission in modern industrial production has irreplaceable importance. It is not only able to provide powerful power output and high-precision motion control, but also has the advantages of smooth operation, compact structure, safety and reliability, adaptability and economy. These advantages make the hydraulic press machine in a variety of industrial fields have been widely used, become an important and indispensable equipment in modern industrial production.
Shanghai ANTISHICNC is a professional hydraulic press machine manufacturer, dedicated to the research and development of high-precision and highly intelligent hydraulic press machine and provide a complete set of molding technology solutions. The hydraulic press machine designed and manufactured by Shanghai ANTISHICNC have advanced and mature technology in the industries of composite molding, stamping and stretching, powder molding, etc., which are widely used in automobile manufacturing, sheet metal processing, animal husbandry, mining, metallurgy, environmental protection, transportation, power generation, etc. The following 100-ton gantry hydraulic press machine, for example, is a professional manufacturer. For example, the following 100-ton gantry hydraulic press machine.

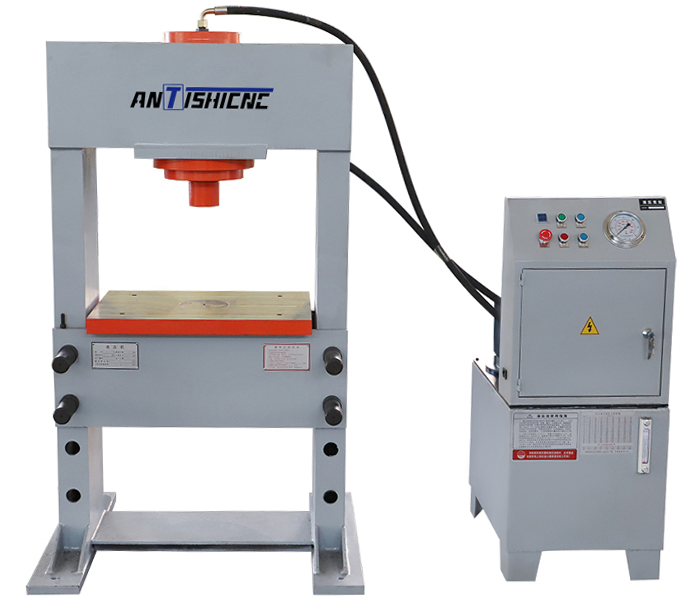

100 tons gantry hydraulic press machine features:
1.100 tons gantry hydraulic press machine adopts all-steel structure, which is treated by vibration aging to make the mechanical deformation small, and the design of the frame is made by finite element analysis, which has high rigidity and high precision.
2.The working table is welded with steel plate to ensure reliability and durability.
3.The structure of 100 tons gantry hydraulic press machine is simple, economical and practical, and the hydraulic control adopts cartridge valve integrated system.
4.Reliable action, long service life, small hydraulic shock, and reduce connection management and leakage points.
5.Independent electrical control system, reliable work, intuitive action, easy maintenance, centralized control with buttons, hydraulic press machine with adjustment and semi-automatic operation.
6.Through the choice of operation panel, it can realize two kinds of forming process of fixed range and fixed pressure, and it has the function of holding pressure delay and so on.
7.100 tons gantry hydraulic press machine slider working pressure, no-load fast down and slow working stroke range can be adjusted according to the process needs.
| Description | YM41-100TA | YM41-100TB |
| Fluid pressure (MPa) | 31.5 | 31.5 |
| Stroke (mm) | 240 | 240 |
| Gantry span (mm) | 520 | 720 |
| Size of working table(mm) | 500*500 | 700*500 |
| Motor power(KW) | 5.5 | 5.5/5.5/7.5 |
| Oil pump displacement(ml/r) | 10/25/40 | 10/25/0 |
| Downward speed(mm/s) | 7.5/19/30 | 7.5/19/30 |
| Return speed(mm/s) | 10/25/41 | 10/25/41 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have hydraulic press machine needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machine and can provide you with professional technical support.
