| Main Features: |

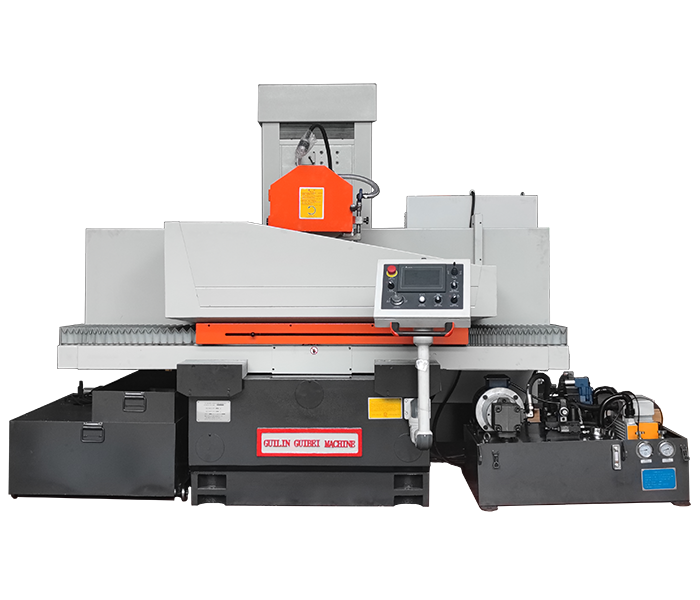

| 3-Axes Automatic Surface Grinding Machine. Flange mount spindle provides not only high precision, strong rigidity but maintenance free. |
| All major structures are casted with high quality grade iron which supply high stability, strong rigidity and high damping capacity. |
| Column machine is designed in double – layer type for higher rigidity, torsion resistance and high cutting efficiency. |
| Slide ways of X and Z axes are Turcite B coated with hand crapped to provide smooth and accurate movement and consistency. |
| Advanced hydraulic system with independent oil tank to prevent heat dissipation and vibration transmitted to the machine. |
| Easy-to-use control panel, located conveniently for user to operate quickly and easily. |
| Control panel: easily set up the operating cycles (cutting amount, in feed times) by pre-set system. The table would stop automatically after the cycle finish. |
| Electromagnetic chuck would be equipped with a chuck control box, able to adjust clamping force upon load of parts and accuracy requirements. Rapid mode for Y axis is available, allow Y axis quickly move the tool to work piece. Vertical feed (Y axis) 0.005 mm per graduation of hand wheel. |
TECHNICAL SPECIFICATION
| Overall Table Working Area | 600 x 320 mm |
| Longitudinal Table Travel | 710 mm |
| Cross Feed Table Travel | 340mm |
| Distance Spindle Center to Table | 600mm |
| Table load including magnetic Chuck | 300 Kg |
| Grinding Wheel | 350x40x127mm |
| Spindle Speed | 1460RPM @ 50Hz |
| Spindle Motor | 4.0kW |
| Hydraulic Motor | 3kW |
| Vertical Movement on Hand Wheel 1 rev. 0.5 mm | 1 rev. 0.5 mm |
| Vertical Movement on Hand Wheel | 1 graduation 0.005mm |
| Auto Down Feed Increment | 0.005~0.025mm |
| Cross Feed on Hand Wheel | 1 graduation 0.02mm |
| Longitudinal table speed | 5~25 m/min. |
