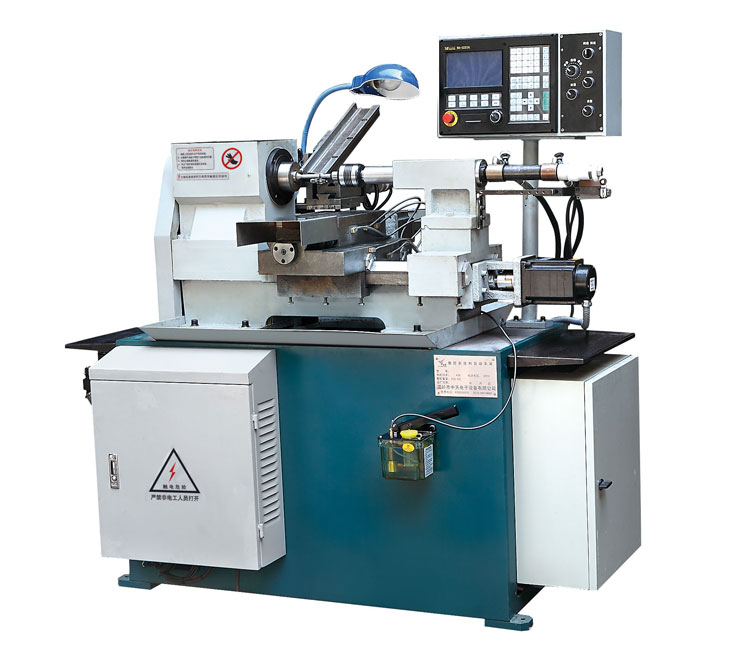

Automatic lathe: As the name implies, the machine tool is a CNC lathe with automatic feeding, automatic processing, and automatic blanking functions. Its processing speed is fast, complex parts are processed and formed at one time, the processing accuracy is accurate and reliable, automatic feeding, automatic stop when the material is finished, and high production efficiency.

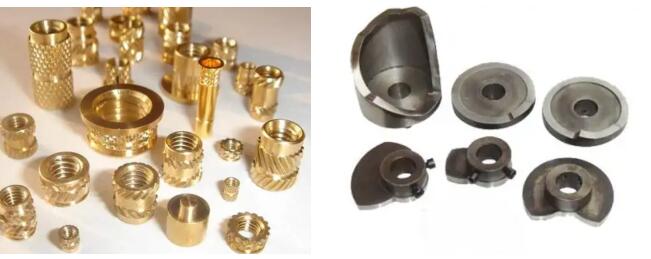

Structurally: The automatic machine tool controls the processing program through the cam, and its basic core is that it can automatically process the same product for a long time after certain settings and adjustments. It is suitable for the processing and manufacturing of precision parts such as copper, aluminum, iron, plastic, etc. It is suitable for batches of instruments, clocks, automobiles, motorcycles, bicycles, glasses, stationery, hardware bathrooms, electronic parts, connectors, computers, mobile phones, electromechanical, military industries, etc. Machining small parts, especially more complex parts.
Precision automatic lathes can be divided into swiss type cnc lathe and cutter type cnc lathe machines.
1. The processing process of the swiss type: the processing material is clamped by the clamp, the material moves forward, and the tool does not move, and the parts are processed through the linear motion or swing motion of the tool.
2. The machining process of the cutter type: the workpiece is clamped with a simple clamp, and the workpiece is processed by moving the turning tool forward, backward, left, and right.
3. The cutter type( cutter-feeding) cam automatic lathe is equipped with 5 tools, and the tooling holders are in order of No. 1, No. 2, No. 3, No. 4, and No. 5 tooling. Each group of tool racks can hold 1-2 cutter, No. 1 and No. 5 No. 1 is the outer diameter of turning, No. 2, 3, and 4 tools are mainly for grooving, chamfering, cutting and other processes. 2 tail shafts, 2 drill bits, 1 tap, and 1 die are simultaneously cut, and tapping, milling, die, embossing and other processing can be performed at the same time. No need for manual operation, complex parts can be simultaneously processed with outer circle, spherical surface, conical surface, arc surface, step, groove cutting, embossing, drilling, tapping, die, cutting and other processes, and the whole process can be completed in one process.
4. High dimensional accuracy: The accuracy of the machine tool spindle can reach 0.003mm, the fine-tuning of the slider is controlled by a micrometer, the dimensional control accuracy can reach 0.005mm, and the spindle speed is within 2000-8000RPM. The minimum amount of cutting feed can be controlled to 0.005, and the roughness of the parts (copper parts) can be as low as Ra0.04-0.08.
5. Automatic feeding: The feeding mechanism automatically feeds materials to the spindle. After the materials are used up, the system automatically stops and alarms. The processing process does not need to be attended by people, achieving a fully automated manufacturing process. One operator can operate multiple machines at the same time.
6. High production efficiency: The machine tool controls the machining process through the cam, and the cam completes a machining process every time it turns one revolution. The cam speed is 1.0-36 rpm, which can be adjusted according to different processing parts. It can process about 30 parts per minute. Since 5 knives can perform cutting processing at the same time, the processing efficiency is very high. It is a general CNC computer lathe and instrument lathe. incomparable.
The CNC automatic lathe produced by SHANGHAI ANTS Machine Equipment Co., Ltd. can be equipped with a manipulator automatic loading and unloading system, which truly achieves fully automatic operation, smooth operation, and high processing efficiency. If there is a demand for automatic production of parts, please contact our sales staff.
