Specification
|
B635A
|
|
Maximum Planing Length
|
350mm
|
|
Maximum Travel from the bottom of ram to Worktable
|
330mm
|
|
Maximum travel of worktable(horizontal)
|
400mm
|
|
Maximum travel of worktable(vertical)
|
270mm
|
|
The maximum distance from shaper body to its leading surface
|
550mm
|
|
The maximum displacement of ram
|
170mm
|
|
Maximum turning angle of worktable( no vice)
|
±900
|
|
The max rotatory angle of worktable(vice)
|
±550
|
|
The max vertical travel of blade frame
|
110mm
|
|
The reciprocating times per minute
|
32, 50, 80, 125, times min
|
|
The ram back and forth a table feed amount |
Wheel a gear (Vertical)
|
0.18mm
|
Wheel a gear (Horizontal)
|
0.21mm
|
|
Wheel four gears (Vertical)
|
0.73mm
|
|
Wheel four gears (Horizontal)
|
0.84mm
|
|
Electric Motor
|
1.5kw 1400r/min
|
|
Carton Size
|
1530*930*1370mm
|
|
NW/GW kg
|
1000kg/1200kg
|

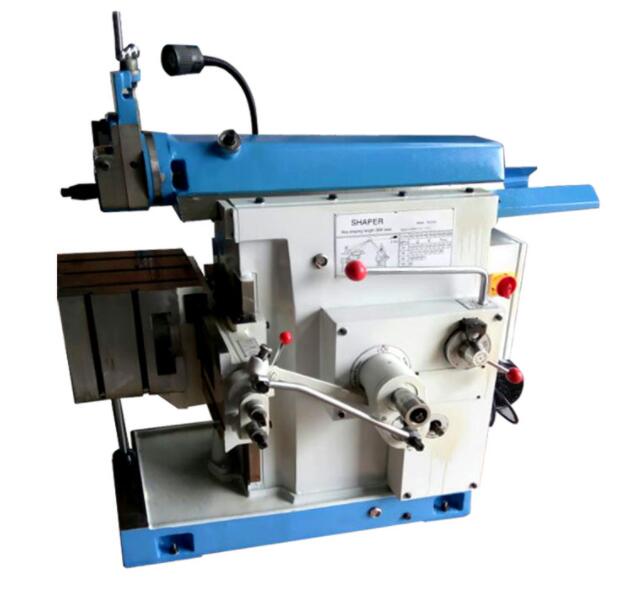

shaper machine B635A shaping machine metal
