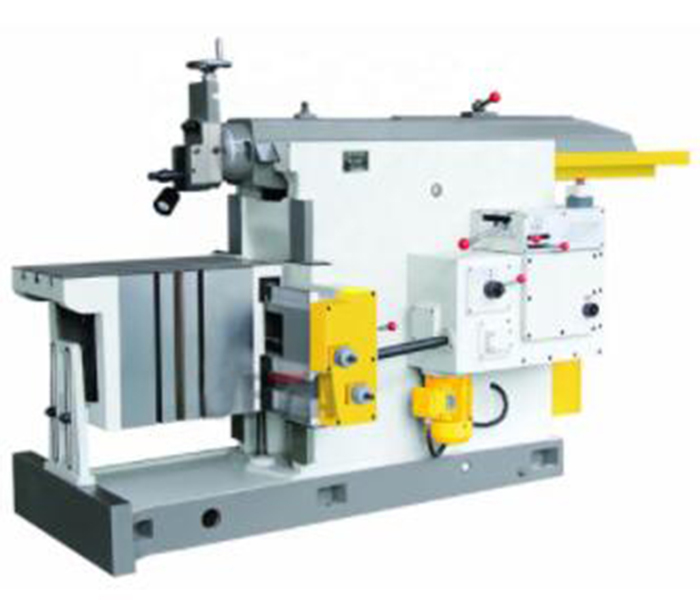

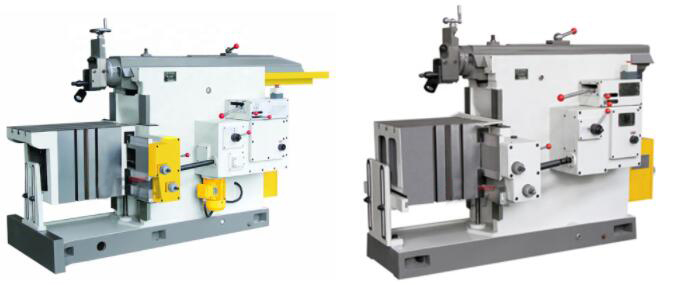

Model
|
B60100
|
||
Maximum cutting length(mm)
|
1000
|
||
Maximum table horizontal travel(mm)
|
800
|
||
Maximum distance from ram bottom to table surface(mm)
|
400
|
||
Maximum table vertical travel(mm)
|
380
|
||
Dimensions of table top surface(L×W)(mm)
|
1000×500
|
||
T ravel of tool head(mm)
|
160
|
||
Swivel of tool head(°)
|
±60°
|
||
Maximum size of tool shank (W×T)(mm)
|
30×45
|
||
Number of ram strokes per minute
|
15、20、29、42、58、83
|
||
Range of table power feed
|
horizontal
|
horizontalvertical
|
0.3~3
|
vertical
|
0.15~0.5
|
||
Rapid feed of table
|
horizontel(mm/min)
|
horizontalvertical
|
3
|
vertical (mm/min)
|
0.5
|
||
Width of central T-slot of table(mm)
|
22
|
||
Power of motor(kw)
|
7.5
|
||
Overall dimensions (L×W×H)(mm)
|
3640×1575×1780
|
||
Weight(kg)
|
4600/4800
|
