The main performance characteristics :
1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining.
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
Application :
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter Enterprise suitable for single or small batch production.
Product main technical parameters:
|
Specification
|
Unit
|
B50100
|
B50125
|
|
Max. slotting length
|
mm
|
1000
|
1250
|
|
Ram moving frequency
per minute |
Times/min
|
4-25/7-25
|
4-30/7-35
|
|
Distance from cutter
head to column surface |
mm
|
1120
|
1600
|
|
Distance between ram
lower end to table surface |
mm
|
1140
|
1650
|
|
Table diameter
|
mm
|
1250
|
1400
|
|
Table longitudinal travel
|
mm
|
1200
|
1400
|
|
Table cross travel
|
mm
|
1000
|
1120
|
|
Table rotation angle
|
°
|
360
|
360
|
|
Table feed range
(longitudinal and crossl) |
mm
|
0.2-5
|
0.2-3
|
|
Table rotary feed range
|
mm
|
0.4-10
|
0.1-5
|
|
Main motor power
|
KW
|
37
|
37
|
|
Machine weight
|
kgs
|
22000
|
26000
|
|
overall dimension
|
mm
|
4400*2830*5730
|
4600x3200x6760
|
|
Fast moving motor
|
r. p.m
|
1.5kw 1440
|
|
|
Main drive motor
|
r. p.m
|
7.5kw.1400
|
|
|
Cooling pump motor
|
r. p.m
|
0.125kw 2800
|
|
|
Net weight of machine tool (about)
|
T
|
10.3T
|
|
|

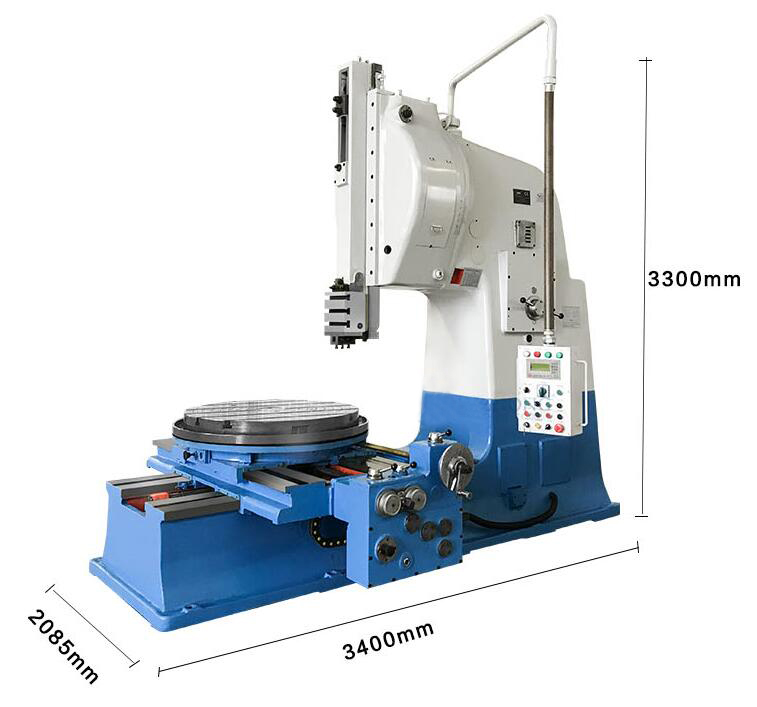

Outline dimension (L * W * H)
|
mm
|
3480×2085×3307
|
