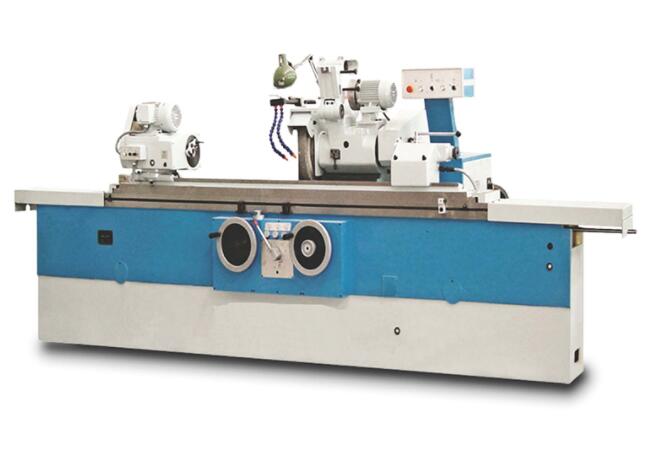

1. Our universal cylindrical grinding machine has compact structure.
2. The executive component structure is reasonable.
3. Whole machine body is high rigid.
4. This kind of machines is high precision.
5. Our universal cylindrical grinding machine is convenient operation and maintenance.
Characters :
High hardness new universal external grinder machine absorbs the advantages of the advanced technology at home and aboard. It is suitable for grinding the internal, external cylindrical and conical work pieces. The performances and prices of this series are more superior compared with the same products at home.
Main technical parameters :
|
Items
|
Unit
|
M1432x1000
|
|
Grinding diameter (O.D/I.D)
|
mm
|
φ8~φ320/φ30~φ100
|
|
Grinding length (O.D/I.D)
|
mm
|
1000/1250
|
|
Center height
|
mm
|
180
|
|
Max. workpiece weight
|
kg
|
150
|
|
Worktable speed
|
m/min
|
0.1~4
|
|
Grinding wheel linear speed
|
m/sec
|
35
|
|
Max. moving amounts of worktable
|
mm
|
1100
|
|
Worktable rotary range
|
°
|
-3~+7°
|
|
Cylindrical grinding wheel size
|
mm
|
Max φ400x50xφ203
Min φ280x50xφ203
|
|
Headstock spindle speed
|
r/min
|
25~220 stepless
|
|
Tips of headstock and tailstock
|
Morse
|
NO.4
|
|
Total motor power
|
kW
|
9
|
|
Overall dimension of machine
|
mm
|
3605x1810x1515
|
|
Machine weight
|
kg
|
3700
|
|
Working accuracy :
|
||
|
Roundness(O.D/I.D)
|
μm
|
1.5/2.5
|
|
longitudinal section diameter uniformity(O.D/I.D)
|
mm
|
5/8
|
|
Surface roughness(O.D/I.D)
|
mm
|
Ra 0.32/0.63
|
