Features :

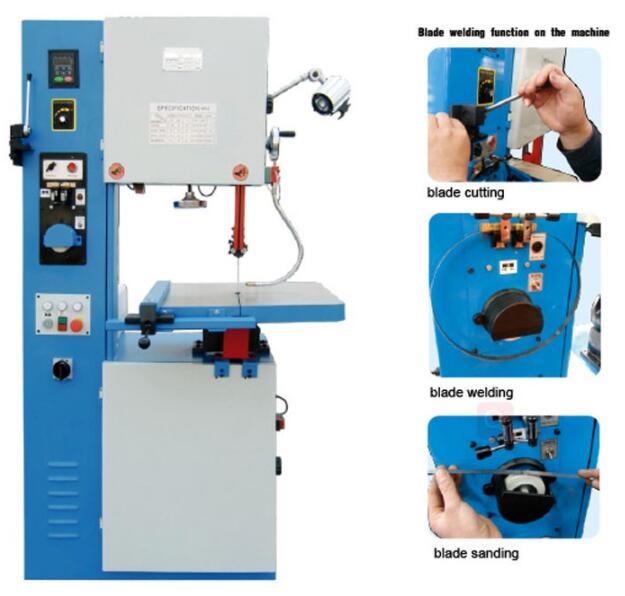

1. Vertical cutting band saw can make various kinds of cutting such as beveling,shaping ,contour,slicing etc.
2. Work table can be swiveled.
3. Blade installing earily and can be reused after sharpening.
4. With variable speed can cutting various materials such as metal, plastic, wood rubber.
5. Servo motor is optional.
6. Variable blade speed by programming inverter.
7. Table tilted 45°.
8. Blade guard height adjustable.
9. Working light.
10. Table gauge available.
|
Maxmum cutting capacity for height
|
285mm (11.2″)
|
|
Maxmum cutting capacity for width
|
400mm (15.7″)
|
|
Table size
|
550*600mm (21.7″ * 23.6″)
|
|
Blade speed (50Hz)
|
0 ~ 1400rpm
|
|
Blade length
|
3390~3467mm
|
|
Blade width
|
3~16mm
|
|
Table tilt
|
R-45°, L-15°
|
|
Main motor / Grinde motor
|
1.5KW (2HP), 0.09KW (1/8HP)
|
|
Eletric welder
|
2.4KVA
|
|
Packing size
|
108*80*200cm
|
|
N.W.
|
310KG
|
|
G.W.
|
380KG
|
