| Item | Unit | VTL4000+C |
| Max. swing diameter | mm | 4600 |
| Table diameter | mm | 4000 |
| Max. turning diameter | mm | 4300 |
| Max.turning height | mm | 1600 |
| Max.loading weight | T | 30 |
| Workbench speed series | – | Two gears (continuously variable speed within gear) |
| Table speed range(turning) | rpm | 60 |
| Table speed range (milling) | rpm | 0.01-1 |
| Main motor rated power (AC) | kw | 40×2 |
| Maximum torque of workbench | KN | 80 |
| Maximum cutting force of vertical milling cutter holder | Kn | 30 |
| X direction travel | mm | 2700 |
| Z-direction travel | mm | 1000 |
| W travel | mm | 1250 |
| X/Y/Z movement speed | Mm/min | 4000 |
| X-axis rapid movement speed | 6000 | |
| Z-axis rapid movement speed | 6000 | |
| W-axis rapid movement speed | 2000 | |
| Ram cross-section size | mm | 280×280 |
| Turning tool holder cross-sectional dimensions | mm | 40×40 |
| C-axis positioning accuracy | “ | ±8 |
| C-axis repeatable positioning accuracy | “ | ±5 |
| Milling spindle taper shank model | BT50 | |
| Milling spindle motor power | kw | 22 |
| Maximum speed of milling spindle | rpm | 2500 |
| Milling spindle torque | Nm | 560 |
| Equipment weight | T | 70 |
| Ball screw diameter | mm | X:80mm
Z:63mm W: two 80mm |
Product Description

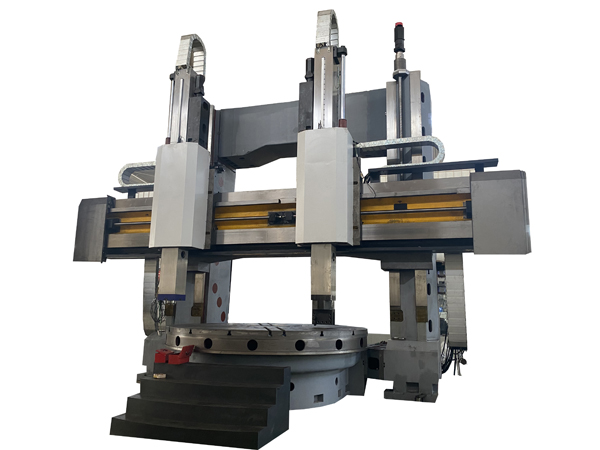

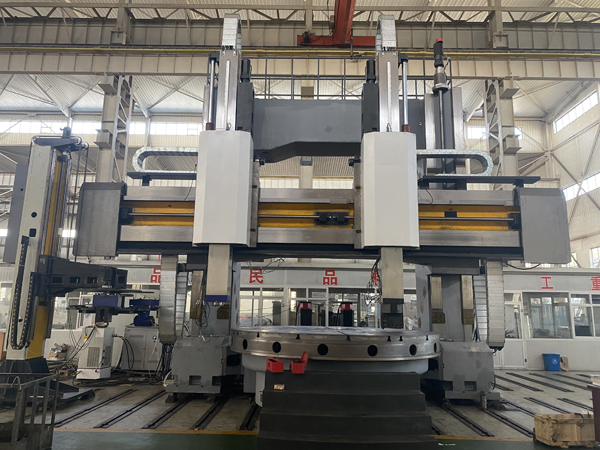

VTL4000 CNC double-column vertical turning and milling compound machining centers is a product of our company that has absorbed contemporary advanced design and manufacturing technology, adopted finite element analysis calculation and optimization design methods, implemented the latest national precision standards, and is equipped with advanced functional components and equipment beds at home and abroad. , the spindle and each transmission structure meet the cutting characteristics of high speed, high precision and high rigidity; the machine tool structure is reasonably designed, has sufficient static, dynamic and thermal rigidity, and can achieve efficient cutting, the system has good dynamic quality; the control used The system and servo system execution components have high precision, good reliability and fast response speed; the machine tool has good use, operation and maintenance craftsmanship and beautiful appearance;High-tech mechatronic machine tools with long service life and high processing efficiency.
This machine tool is suitable for high-speed steel, carbide, various cast iron and ceramic cutting tools. It can rough and finish machining parts made of various ferrous metals, non-ferrous metals and some non-metallic materials. It can complete turning of internal and external cylindrical surfaces and internal and external conical surfaces. , end face, grooving, metric and inch threads and curved surfaces, etc., and have constant linear speed cutting
Product Application:
1.Turning, milling, boring, drilling and tapping functions
It can complete turning, drilling, tapping, boring, milling plane and cylindrical plane, and boring depth of the end face of the part.
Processes such as small holes and milling of keyways on internal and external cylindrical surfaces and end surfaces.
2.Indexing function
The workbench has a circumferential milling feed function during milling, and the workbench can be used for drilling, tapping, and boring at any position.
Has indexing function.
Product Standard Equipment
| NO | Main components | Brand |
| 1 | Main motor | Siemens |
| 2 | CNC system | Siemens 828D |
| 3 | Workbench C-axis encoder | Siemens |
| 4 | Tool holder handheld unit | Siemens |
| 5 | AC servo motor | Siemens |
| 6 | AC servo drive unit | Siemens |
| 7 | ring gear | China |
| 8 | gear | China |
| 9 | Linear Guides | Taiwan HIWIN |
| 10 | Spindle bearings | Japan NSK |
| 11 | Two speed gearbox | Germany ZF |
| 12 | Ball screw | Germany Yifu |
| 13 | Lubrication system | Taiwan |
| 14 | Hydraulic power station | Taiwan |
| 15 | Class II electrical components | Schneider |
| 16 | Control cabinet | China |
| 17 | Coupling | Germany R+W |
| 18 | Rail protective cover | China |
| 19 | Oil cooler | China |
| 20 | Tool magazine | China |
| 21 | External protection | China |
| 22 | Reducer | Taiwan |
