Technical Parameter
| Technical SPEC | Unit | M3 | M4 | M5 | M6S | ||
| Long travel(X) | mm | 800 Swallow guide rail | 900 Swallow guide rail | 800
Swallow guide rail |
900 Swallow guide rail | 450(Square guide rail) | 450(Square
guide rail) |
| Cross travel(Y) | mm | 450 Swallow guide rail | 450 Rectangular guide rail | 1000 Swallow guide rail | 1000 Swallow
guide rail |
||
| Vertical travel(Z) | mm | 520 Swallow guide rail | 520 （Swallow guide rail） | 500 Square tail rail | 500 Square tail rail | ||
| T-slot No.and size | mm | 3×16×63 | |||||
| Ram travel | 600 | 610 | |||||
| Spindle hole taper | – | Standard :R8 | NT40 | ||||
| Spindle Sleeve travel | mm | 120 | 127 | ||||
| Spindle Speed | steps | 16 | |||||
| rpm | 70－4800 | 70－4620 | |||||
| Spindle motor | KW/HP | 2.2Kw/3HP | 3.7Kw | ||||
| Automatic lifting | – | – | 2.9kw | ||||
| Head swivel | ° | 90° | |||||
| Head tilting | ° | 45° | |||||
| Dimension of package | mm
|
1500×1450×2200 | 1500×1450×2200 | 1650×1900×2350 | |||
| N.W/set | KG | 1100Kg | 1100Kg | 1700Kg | |||
| Table size
(Standard=S /Big Size=B) |
mm/” | 254×1270 | 254×1370 | 254×1270 | 254×1370 | 320×1470 | |
Equipment Introduction

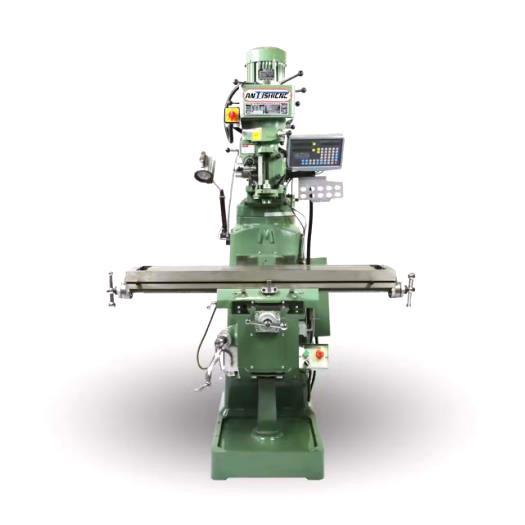

1. Vertical Turret milling machine is compact in structure, small in size and high in flexibility. The milling head can rotate 90° left and right, and 45° forward and backward. The ram can not only retract back and forth, but also rotate 360° in the horizontal plane, thus greatly expanding the machine tool’s capacity. Effective working range.
2. Vertical Turret milling machine is made of SC250 cast iron, with strong structure, no deformation and good stability. The main shaft is made of 40 chrome alloy steel. After quenching and tempering heat treatment and precision grinding, it is equipped with a combination of precision-grade beveled ball bearings. It has strong cutting force and excellent precision.
3. The triaxial angle seat nut is made of high-grade phosphor bronze (PBC-2), which has good wear resistance and long service life.
4. The X, Y, Z axis slide-ways are attached with TURCITE-B wear-resistant sheets, which are light in operation, low in wear rate and durable.
5. Equipped with improved electrical box and controller.
6. The spindle can choose R8, NT30/NT40.
Standard Equipment
Use manual
Tool box
Optional Equipment
DRO
Flat pliers
X Knife Walker
Collect
Platen
Water pump
Water Tray
