What grinding problems will centerless grinder encounter in the process of grinding?

The grinding problems of centerless grinder are as follows:
1. The workpiece roundness of centerless grinder is out of tolerance and the grinding wheel is not sharp. The characteristics of the workpiece and the rule of accuracy change should be mastered and the grinding wheel should be trimmed in time.
2. The roundness of the workpiece of the centerless grinder is out of tolerance, the guide wheel is not rounded, or it is out of round due to too long working time. Pay attention to timely repair.
3. The workpiece of the centerless grinder is angular and round, and the imbalance between the grinding wheel and the guide wheel is too large. Re balance the grinding wheel and the guide wheel.
4. Workpiece straightness of centerless grinder is out of tolerance, and the grinding wheel is too soft during cut in grinding. Select a harder grinding wheel, pay attention to timely dressing, reduce cut in feed, and increase the number of smooth grinding.
5. If the cylindricity of the workpiece of the centerless grinder is out of tolerance, the position of the dresser shall be adjusted according to the taper direction of the workpiece, and the grinding wheel shall be trimmed again.
6. The cylindricity of the workpiece of the centerless grinder is out of tolerance, and the hardness of the grinding wheel is too low during cut in grinding. Select a harder grinding wheel, pay attention to timely dressing, reduce the cut in feed, and increase the number of smooth grinding.

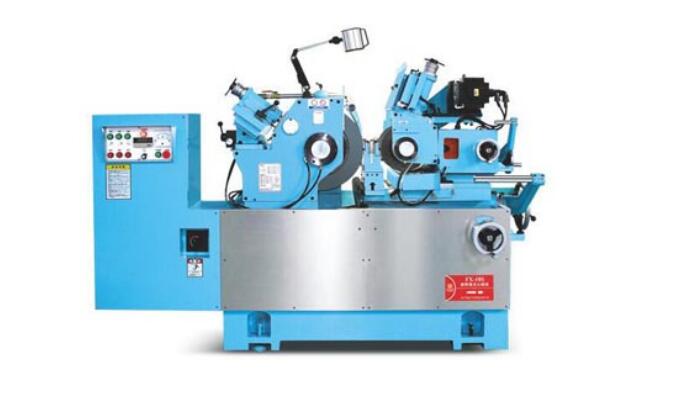

Solution to Grinding Problems of FX-12S Centerless Grinder
7. The cylindricity of workpiece of centerless grinder is out of tolerance, and the grinding wheel and guide wheel have been worn and lost their original correct shape. Timely repair the grinding wheel and guide wheel to ensure correct shape.
8. The workpiece surface of centerless grinder has vibration traces, the grinding wheel or guide wheel is unbalanced, and the balancing grinding wheel or guide wheel
9. The workpiece surface of the centerless grinder has vibration traces, and the hardness of the grinding wheel is too high or has been blunt. The hardness of the grinding wheel should be correctly selected according to the characteristics of the workpiece material, and the grinding wheel should be trimmed in time.
10. There are vibration marks on the workpiece surface of centerless grinder, and the grain size of the grinding wheel is too fine. The grinding wheel should be selected correctly according to the characteristics of the workpiece and the grinding requirements, and according to the characteristics of the grinding tool and its selection rules.
11. The workpiece surface of the centerless grinder has vibration traces, and the grinding wheel is trimmed too rough or too smooth. Select the correct trimming method and amount according to the grinding requirements.
12. The workpiece surface of centerless grinder is burnt, and the grinding wheel is trimmed too thin or blunt. Select the correct trimming method and amount according to the grinding requirements.
13. The workpiece surface of centerless grinder is burnt, and the hardness of the grinding wheel is too high. The grinding wheel should be selected correctly according to the characteristics of the workpiece and the grinding requirements and the characteristics of the grinding tool and its selection rules.
14. The workpiece surface roughness value of centreless grinder is out of tolerance, and the grain size of the grinding wheel is too coarse. The grinding wheel should be selected correctly according to the workpiece characteristics and grinding requirements and according to the characteristics of the grinding tool and its selection rules.
15. The workpiece surface roughness value of centreless grinder is out of tolerance, and the grinding wheel dressing is too rough. Select the correct dressing method and amount according to the grinding requirements.
16. The workpiece surface roughness value of centreless grinder is out of tolerance, and the hardness of the grinding wheel is too soft. The grinding wheel should be selected correctly according to the workpiece characteristics and grinding requirements according to the characteristics of the grinding tool and its selection rules.
17. The workpiece size of centerless grinding is scattered, the grinding wheel just trimmed is not sharp, and the diamond has been worn. The diamond should be reversed or replaced in time.
