The hydraulic tensioning system of a metal band saw is one of its core functions. It is mainly used to ensure that the saw blade maintains constant tension during the cutting process, thereby improving cutting accuracy, extending the life of the saw blade and ensuring operational safety.
I. The core role of hydraulic tensioning
Maintaining stable tension of saw blades
The hydraulic system is driven by oil pressure to adjust the tightness of the saw blade in real time to ensure that it maintains uniform tension when running at high speed or when the load changes.
Importance: Insufficient tension will cause the saw blade to slip and cut skewed; excessive tension will accelerate the fatigue of the saw blade or even break it.
Adapt to different working conditions
When cutting different materials (such as steel, aluminum alloy, plastic) or workpieces of different thicknesses, different tensions are required. Hydraulic tensioning can quickly adjust the pressure value and automatically match the optimal tension.
For example: Cutting carbide requires higher tension to prevent the saw blade from shaking, while soft materials can appropriately reduce tension to reduce wear.
Dynamic compensation of saw blade extension and contraction
The saw blade will produce thermal expansion due to frictional heat during the cutting process. The hydraulic system can sense the tension changes in real time and automatically compensate to avoid tension imbalance due to thermal expansion and contraction.
Extend the service life of the saw blade
Stable tension can reduce the wear and tooth collapse of the saw blade caused by vibration, slippage or local overload, and the service life can be increased by 20%-30%.
II.Advantages of hydraulic tensioning vs mechanical tensioning
| Comparison items | Hydraulic tensioning | Mechanical tensioning (manual/spring) |
| Adjustment accuracy | High (precise control of pressure gauge/sensor) | Low (depends on manual experience) |
| Response speed | Real-time automatic adjustment | Requires manual shutdown |
| Anti-interference ability | Strong (adapt to temperature and load fluctuations) | Weak (susceptible to environmental influences) |
| Automation degree | Support PLC integration and intelligent management | Depends on manual intervention |
| Maintenance cost | High (regular inspection of hydraulic oil and seals is required) | Low (simple structure) |
III. Typical application scenarios of hydraulic tensioning system
High-precision cutting
For example, in the processing of aerospace parts, the verticality error of the sawing surface is required to be ≤0.1mm. Hydraulic tensioning can ensure that the saw blade is not offset.
Continuous mass production
During long-term operation, the hydraulic system automatically compensates for the tension attenuation to avoid frequent shutdown adjustments.
Cutting of complex materials
For example, difficult-to-cut materials such as titanium alloy and stainless steel require dynamic adjustment of tension to cope with changes in material hardness.
Ⅳ.Operation precautions
Regular maintenance
Check the cleanliness of the hydraulic oil (it is recommended to replace it every 500 hours) to prevent oil blockage or valve core jamming.
Pressure setting reference
When cutting carbon steel in general, the saw blade tension is recommended to be set to 250-300 N/mm² (refer to the saw blade manufacturer’s parameters).
Troubleshooting
If burrs or deflections appear on the sawing surface, first check whether the hydraulic tensioning pressure is stable and eliminate cylinder leakage or sensor failure.
The hydraulic tensioning system is the key guarantee for efficient and precise cutting of the band saw. Through dynamic pressure control and automatic compensation mechanism, the performance and reliability of the equipment are significantly improved. Reasonable use and maintenance of the hydraulic system can greatly reduce production costs and improve processing quality.

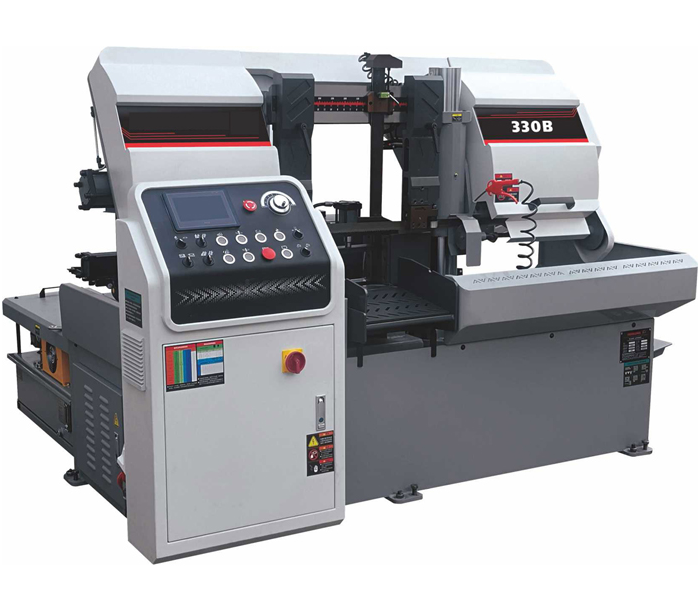

Regarding the hydraulic tensioning of metal band saws, our new generation of 330A/B&430A/B&530A/B is the standard configuration of the machine.
| Technical Specifications| Model | 330B |
| Cutting capacity 0° (flat) (length x width) | 330*330 mm |
| Cutting capacity 0° (round) | 330 mm |
| Cutting capacity 0° (square) | 330*330 mm |
| Cutting speed infinitely variable | 20~80 m/min |
| Stop length(single stroke) | 500 mm |
| Accuracy of the feeding(single feeding) | ±0.2 mm |
| Saw blade size | 34*1.1*4115 mm |
| Saw blade tension type | Hydrualic |
| Workbench height | 685 mm |
| Motor rating main drive | 4 kw |
| Motor rating of hydraulic feed | 0.75 kw |
| Overall dimensions (length x width x height) | 2350*2220*1500 mm |
| Weight(NET WEIGHT) | 2054 kgs |
 |
|
If you are looking for a suitable metal band saw machine. Welcome to consult Shanghai ANTISHICNC. We are a senior band saw machine equipment supplier with rich experience in mechanical equipment manufacturing and application, and can provide you with professional technical support.
