Product Description:

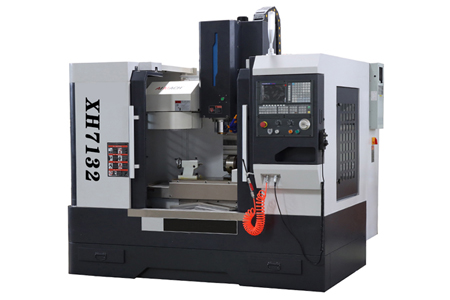

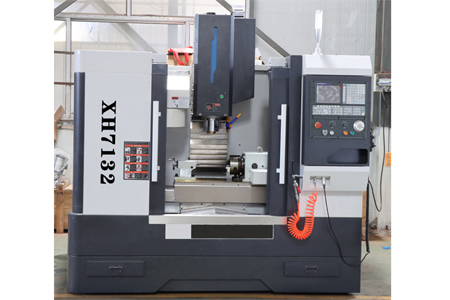

The XK/XH series CNC milling machine suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.
Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.
The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.
Preload ball screw on, Y, Z-Axis
High speed spindle unit
Linear-guideway on X, Y, Z-Axis
Full protection
Machine tool changer from Taiwan with 20 -station
Mechanical weight balance on Z-AXIS
High -quality spindle bearing ensures very quiet operation and longer sevice life
Specifications | Units | XK7132A |
X-axis travel | mm | 500 |
Y-axis travel | mm | 320 |
Z-axis travel | mm | 350 |

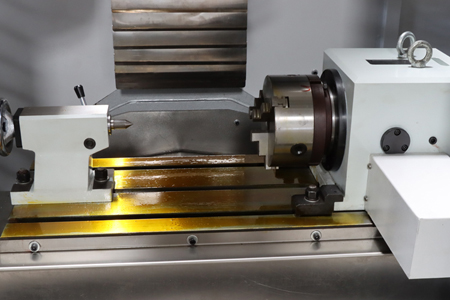

Table size | mm | 800×320 |
Spindle power | kw | 2.2 |
Maximum spindle speed | rpm | 80-6000 |
Rapid traverse (X/Y/Z) | mm/min | 18000/18000/18000 |
Spindle nose to table | mm | 120-470 |
Spindle center to column surface distance rail | mm | 350 |
Positioning accuracy | mm | 0.007 |
Repeat accuracy | mm | 0.003 |
Machine weight | kg | 2500 |
Dimensions | mm | 2250x2200x2400 |
Specifications | Units | XK7132A |
X-axis travel | mm | 500 |
Y-axis travel | mm | 320 |
Z-axis travel | mm | 350 |
Table size | mm | 800×320 |
Spindle power | kw | 2.2 |
Maximum spindle speed | rpm | 80-6000 |
Rapid traverse (X/Y/Z) | mm/min | 18000/18000/18000 |
Spindle nose to table | mm | 120-470 |
Spindle center to column surface distance rail | mm | 350 |
Positioning accuracy | mm | 0.007 |
Repeat accuracy | mm | 0.003 |
Machine weight | kg | 2500 |
Dimensions | mm | 2250x2200x2400 |
STANDARDACCESSORIES: | OPTIONAL ACCESSORIES: |
FANUC 0i mate-MD CNC system, and linear guide-way. | Umbrella plate type A. T. C with 10 tools. |

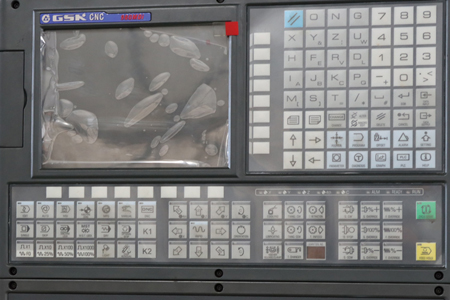

High speed spindle unit(10000rpm). | HNC-21/22MD/FAUNC 0i MD/GT-150M/GSK-983M or KND-2000M CNC system. |
Umbrella type A. T. C with 10 tools. | |
Pneumatic tools clamping and releasing system. | |
5.5KW Servo-driver for spindle. Air cooling | |
Air cooling. Full splash guard. | |
Adjusting wedge and screw. | |
Spring chuck, Tool shank, and Rivet. | |
Interval auto-lubricating |
