CNC Milling Machine

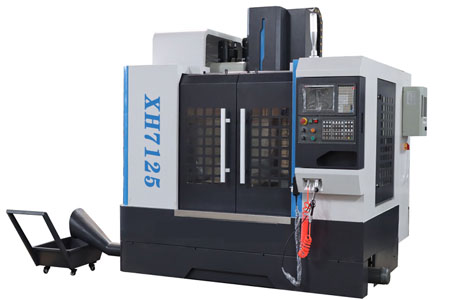

XK7125 XH7125 CNC milling machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Specifications Unit XH7125 XK7125
Table size mm 800×250 800×250
X-axis travel mm 450 450
Y-axis travel mm 260 260
Z-axis travel mm 380 380
Distance from spindle axis to column surface mm 330 330
Distance between spindle nose and worktable mm 50-430 50-430
The vertical tolerance of distance between spindle nose and worktable mm ≦0.02 ≦0.02
X/Y/Z rapid traverse M/min 6/5/4 6/5/4
Max.spindle speed rpm 6000 6000
Spindle taper BT30 BT30
Main motor power kw 2.2 2.2
X axis motor torque N.m 7.7 7.7
Y axis motor torque N.m 6 6
Z axis motor torque N.m 6 6
Tool capacity 12 armless type tools magazine
Positioning accuracy mm 0.02 0.02
Repeat positioning accuracy mm 0.01 0.01
Machine dimension mm 2200×1650×2200 1200×1500×2100
Machine weight kg 1800 1400

Product Introduction:
The XK/XH series CNC milling machine suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.

Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.

The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.

Standard configuration:

1.The CNC system: KND2000M

2.The knife: The famous Taiwan bamboo hat knife.

3.The unclamping cylinder: Taiwan Shangpin

4.The weight: Wuxi Xieqing nitrogen balance

5.The high quality castings: Resin sand casting

6.The spindle: Taiwan famous high speed spindle

7.The screw: HIWIN

8.The bearing: Japan NTN

9.The Internal protection: half or full protection

Select the configuration:

1.M70B/M70A Mitsubishi FANUC 0i mate MD

2.The CNC dividing head

3.The taiwan famous brand manipulator knife storehouse

4.NC rotary table

5.The chip cleaner

6.The fourth axis

7.The fifth axis

The main performance characteristics:

1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system

CNC Milling Machine Configuration Application:

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
