Recently, our company successfully exported 1 set Z3063x20-1 Heavy duty Radial Drilling Machine to a company in Saudi Arabia.
Customer company is one of the most prominent and prestigious industrial companies in the Kingdom of Saudi Arabia and the region as it ranked among the top 100 Saudi, with an industrial experience of more than 50 years. The packaging and building materials production sector is the core of their activity, as we are distinguished by providing a wide range of integrated products of high quality. and quality services that support the needs of the food security, industry, and building and construction sectors.
This is the second time they’ve contacted us to purchase equipment,and their engineers also come to our factory for test the machine.
| Producer | Shanghai ANTS Machine Equipment Co.,LTD | Brand | ANTISHICNC | Origin country | Shanghai, China |
| Product Name | Heavy duty Radial Drilling Machine | Model No. | Z3063x20/1 | Export Country | Saudi Arabia |
| Customer Introduction | Customer company is one of the most prominent and prestigious industrial companies in the Kingdom of Saudi Arabia and the region as it ranked among the top 100 Saudi, with an industrial experience of more than 50 years. The packaging and building materials production sector is the core of their activity, as we are distinguished by providing a wide range of integrated products of high quality. and quality services that support the needs of the food security, industry, and building and construction sectors. | ||||
| Equipment
Application |

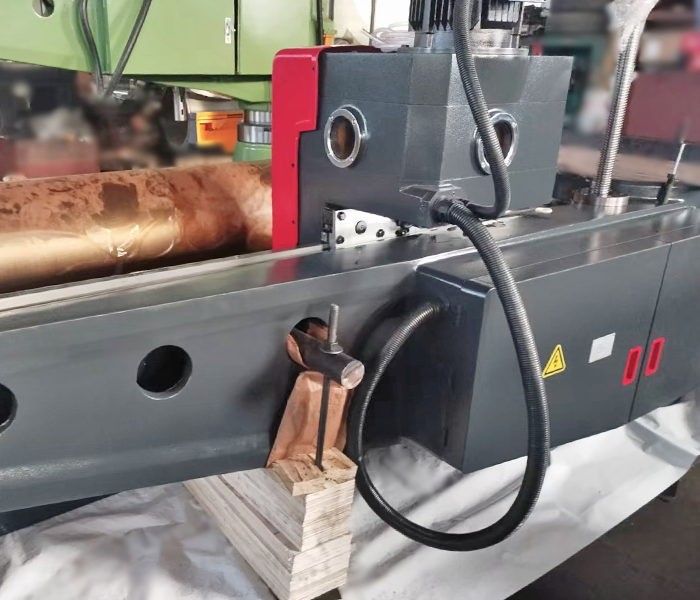

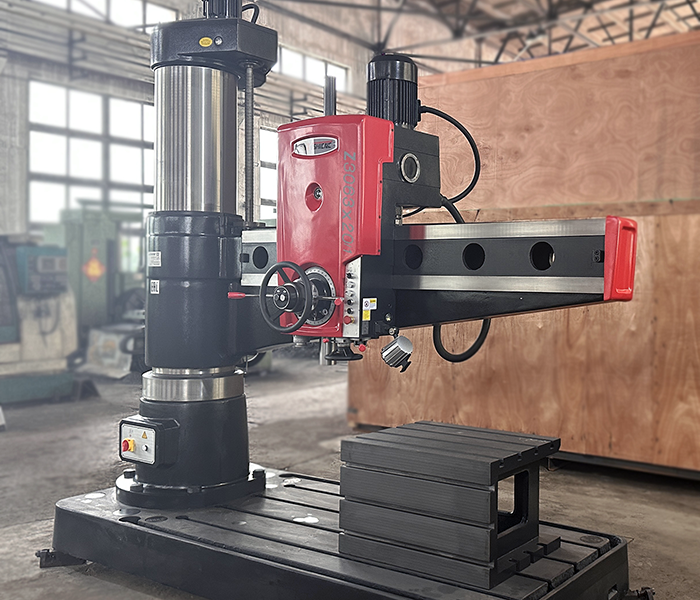

The Z3063x20/1 is a very popular hydraulic radial drilling machine, Use Hydraulic clamping,Hydraulic shifting,Automatic lift,Auto feed, Spindle feeds automatically and can be tapped,the oil pump at the turbine of the main shaft is automatically lubricated. The guide rail is high-frequency quenched and has good rigidity
This Machine adopt hydraulic pre-selection speed change mechanism, which can save auxiliary time.The main shaft is forward and reversed, parking (braking), shifting, neutral and other actions are controlled by a handle, which is easy to operate.The spindle box, rocker arm, inner and outer columns adopt hydraulically driven diamond block clamping mechanism, and the clamping is reliable. |
||||
![]() |
|||||
![]() |
|||||
![]() |
|||||
Packing size information:
| DESCRIPTION&SPECIFICATION | PACKAGES | N.W
(KGS) |
G.W
(KGS) |
Packing Size(mm) | Volume
(CBM) |
| Z3063X20/1 RADIAL DRILLING MACHINE WITH ALL CUTTING TOOLS | 1 | 6800 | 7080 | 4220x2280x2150 | 20.68 |
| TOTAL | 1 | 6800 | 7080 | 4220x2280x2150 | 20.68 |
