CNC wheel lathes are used to process the wheel rims, treads and inner sides of railway vehicle wheelsets with various track gauges. They are suitable for various vehicle production, maintenance factories, vehicle depots and other units in the railway transportation department, and can meet the turning processing of wheel rims, treads and brake discs of various wheel types.

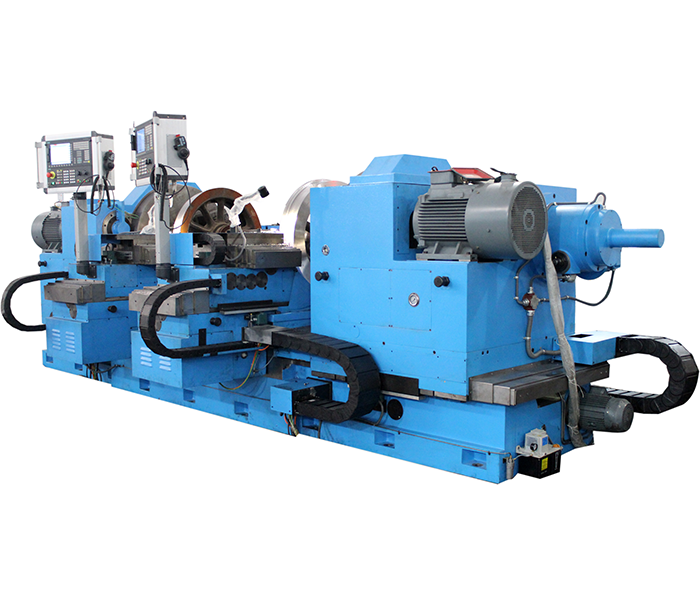

Recently, the Shanghai ANTS team received an inquiry from a railway transportation company. The customer needs to repair wheels of different track gauges, including standard specifications of 1435mm and 1668mm, and wheel diameters ranging from 630mm to 1250mm. According to customer needs, we recommended the CKW8013E multi-gauge CNC wheel lathe.
| Specification | CKW8013E |
| Track Gauge | 1000, 1435, 1520, 1676mm |
| Processing wheel set diameter range | φ600-1300mm |
| Wheel set mounting diameter range | φ690-1100mm |
| Wheelset axle length range | 1700-2610mm |
| Wheel width range | 120-140mm |
| Max workpiece weight | 5000Kg |
| Spindle speed series | stepless |
| Spindle speed range | 6-42r/min |
| Chuck diameter | 1300 mm |
| Number of coordinate axes | (X-axis, Z-axis) 2 each |
| Tool post feed level | stepless |
| Tool holder feed range (commonly used) | |
| Horizontal direction (X) | 0.5-2mm/r |
| Longitudinal (Z) | 0.5-2mm/r |
| Main motor power | 2×30KW |
| Synchronous speed | 1500r/min |
| CNC system | Siemens 828D (two sets) |
| AC servo motor | 1FK7101 (4 pieces) |
| Torque | 15.5/27N.m |
| Speed | 3000 r/min |
| Overall dimensions of machine tool (length × width × height) | about 7000×2400×2100mm |
| Total power of machine tool | 100KVA |
| The total weight of the machine tool | about 35T |
| Machine tool noise | ≤83dB(A) |
| Max cutting area |
If you are also a railway transportation company, or have similar processing needs, please feel free to contact Shanghai ANTS. We have rich experience in CNC lathe manufacturing and application, and can provide you with professional technical support.
Key word: CNC wheel lathe, Wheel repair, railway transportation
