Recently, a client from a Singapore research institute contacted the Shanghai ANTISHICNC team. They wanted to use a center-less grinder to machine high-precision alumina ceramic rods. Their workpiece is 203mm long, 9.4±0.005mm in diameter, with a straightness of 2.5 microns, a roundness of 0.5 microns, and a surface finish (Ra) of 0.2 microns. The roundness and precision requirements were quite high, and the rod also had two small bevels.
Can ANTISHICNC’s center-less grinder machine producing high-precision alumina ceramic rods? The answer is undoubtedly YES! But according to the client’s high precision requirements, after analysis by the ANTISHICNC technical team, we recommended our ZYM450 model. This model utilizes a Japanese-technology dual-static front-support spindle with pure liquid lubrication for low friction, meeting the client’s high-precision requirements for machining ceramic rods.
The relevant information of ZYM450 model is as follows:
| Specifications | Units | ZYM450 |
| Standard Machine Working Range (Diameter) | mm | Φ 1-80 |
| 450 Grinding Wheel Size (OD * W * ID) | mm | Φ450*205*Φ228.6 |
| Adjusting Wheel Size (OD * W * ID) | mm | Φ255*205*Φ111.2 |
| 450 Grinding Wheel Speed | RPM | 1500 |
| Adjusting Wheel Speed | RPM | 0-250 |
| 450 Grinding Wheel Drive Motor | KW | 18.5 |
| Adjusting Wheel Servo Motor | KW | 3 |
| Feed Servo Motor | KW | 2.4 |
| Grinding Wheel Dressing Servo Motor | KW | 1.0*2 |
| Roller Dressing Motor (Optional) | KW | 1.5 |
| Hydraulic Pump Drive Motor | KW | 0.75 |
| Cooling Pump Drive Motor | KW | 0.37 |
| Adjusting Wheel Fine Adjustment Hand-wheel | mm | 0.1/rev 0.001/scale |
| Table Feed Hand-wheel | mm | Minimum servo feed setting is 0.001mm |
| Table Fine Adjustment Hand-wheel | mm | 0.2/rev 0.001/scale |
| Adjusting Wheel Tilt Angle | Deg | +5°～-3° |
| Adjusting Wheel Rotation Angle | Deg | ±5° |
| Machine Footprint (L * W * H) | mm | 3150×2100×2300 |
| Machine Weight | KG | About 4500 |
The machines are divided into two types: half-shield protection and full-shield protection. When debugging the full-shield protection machine, it will be more troublesome and time-consuming than the half-shield machine.

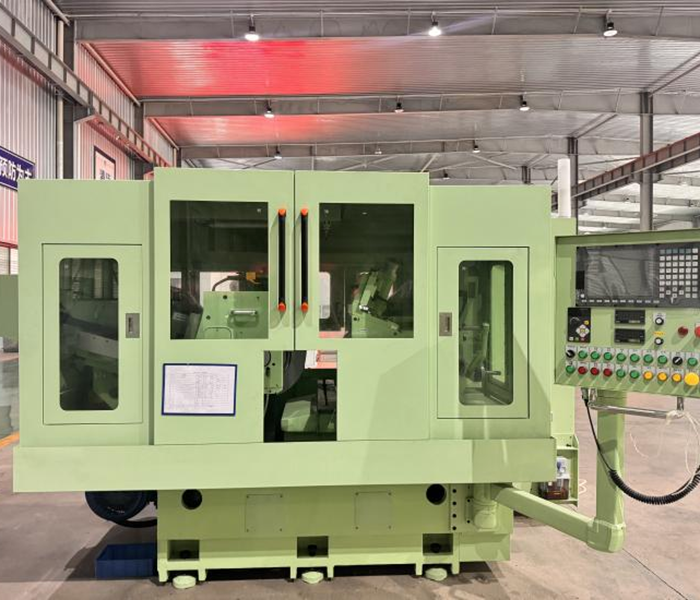

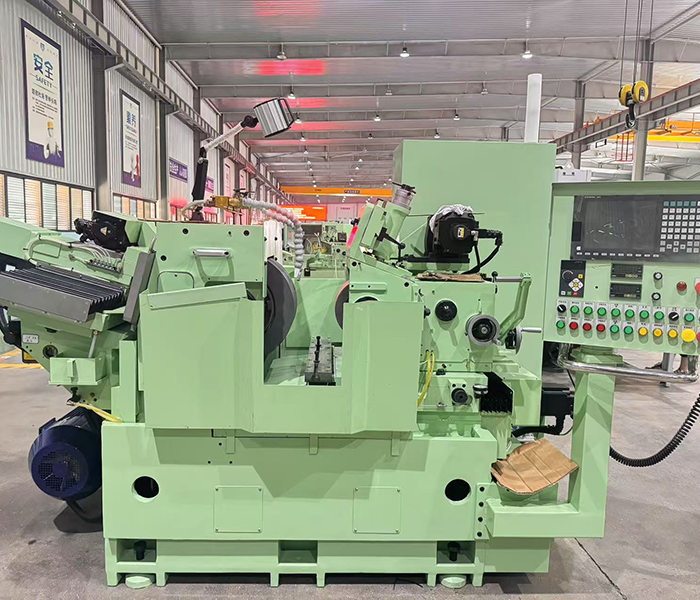

| Half protective cover | Full protective cover |
 |
 |

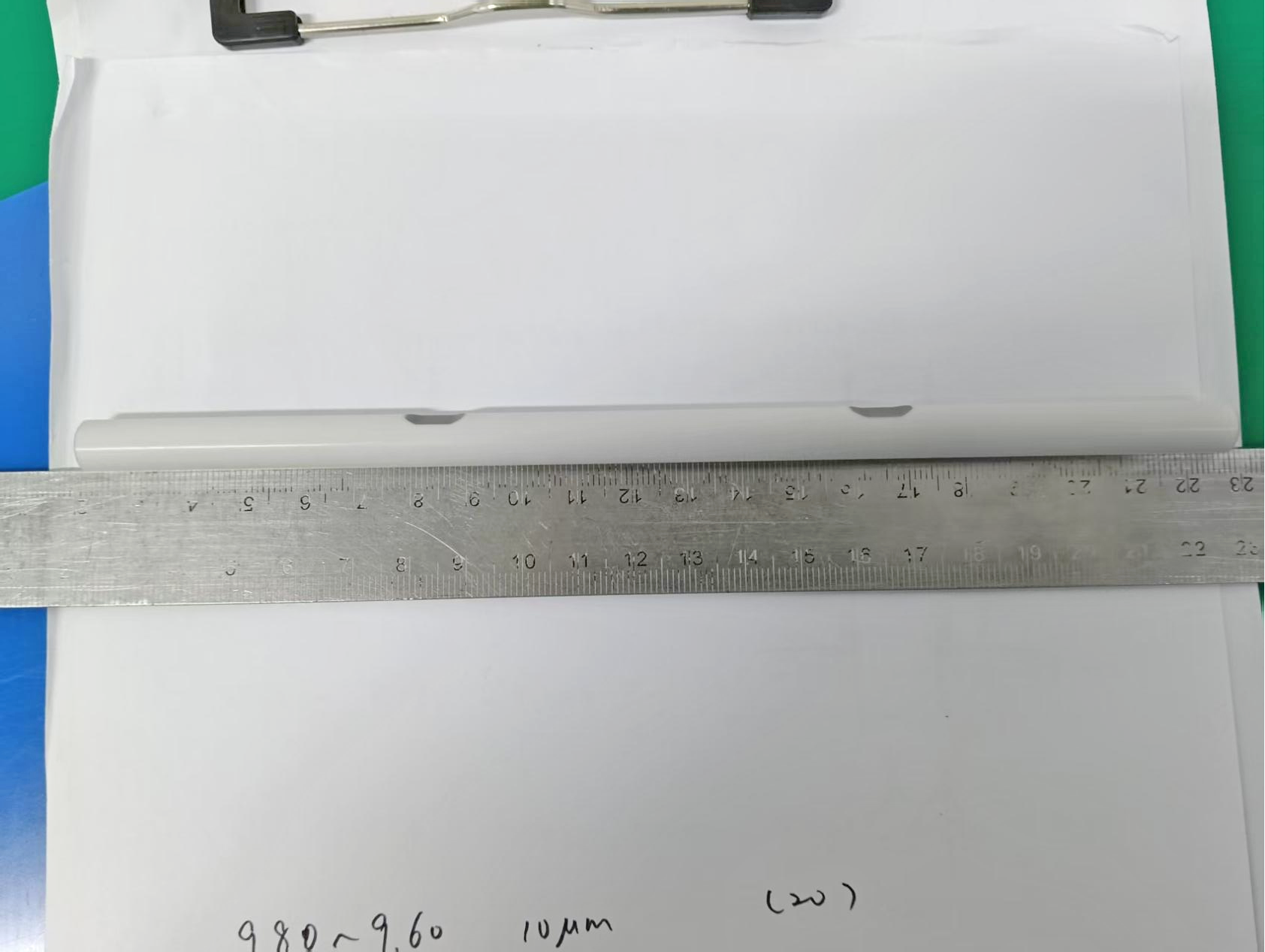

The customer workpiece picture is as below:
ANTISHICNC is currently waiting for customers to send samples for testing. If you have similar needs, please contact Shanghai ANTISHICNC: contact@antsmachine.com
We not only have center-less grinders, external cylindrical grinders, internal cylindrical grinders, and universal grinders, but also various other grinders, such as surface grinders, five-axis grinders, thread grinders, vertical grinders and other products. Our technical team will be able to match you with the most suitable technical solution according to your needs.
