Turret is the top priority in CNC lathes. There are many types of turrets: servo ,power,electric and hydraulic turret. So how to distinguish these turrets? Shanghai ANTISHICNC engineers will point out the difference for you:
Among them, servo turrets, power turrets, and electric turrets are all types of turrets used in CNC (computer numerical control) machining centers and lathes. Each type has its own method of operation and specific applications. The following is how they are distinguished and their typical applications:

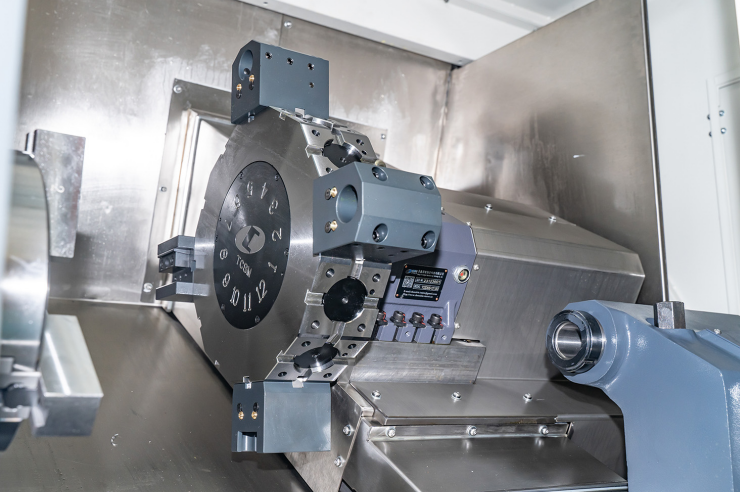

1.Servo Turret:
(1)Operation: Servo turrets are driven by servo motors, which provide precise control over tool positioning and indexing. They can rotate to various tool positions with high accuracy.
(2) Features: Servo turrets often have a wide range of tool stations, allowing for flexibility in tool selection. They can perform tool changes quickly and accurately during machining operations.
(3) Applications: Servo turrets are commonly used in high-precision machining applications where rapid tool changes and precise tool positioning are essential. They are suitable for complex machining tasks and high-volume production runs.
2.Power Turret:
(1) Operation: Power turrets are hydraulically or pneumatically driven and rely on hydraulic or pneumatic pressure to rotate and lock tool positions.
(2) Features: Power turrets are robust and capable of handling heavy cutting loads. They typically have fewer tool stations compared to servo turrets but can still provide efficient tool changes.
(3) Applications:Power turrets are often used in general-purpose machining operations where moderate tool changes are required. They are suitable for applications such as turning, facing, and drilling in both small and medium-sized production runs.
3.Electric Turret:
(1) Operation: Electric turrets utilize electric motors for tool rotation and positioning. They offer precise control over tool indexing and can be operated with high accuracy.
(2) Features: Electric turrets are known for their reliability and energy efficiency. They can provide fast and accurate tool changes, making them suitable for high-speed machining applications.
(3) Applications: Electric turrets are commonly used in CNC lathes and turning centers for applications requiring rapid tool changes and high levels of precision. They are often preferred in industries such as automotive, aerospace, and medical manufacturing.
4.Hydraulic Turret:
(1)Drive Mechanism: Hydraulic turrets use hydraulic pressure to rotate and lock tool positions. Hydraulic cylinders or motors control the turret’s movements.
(2)Advantages:
Power: Hydraulic turrets are capable of handling heavy cutting loads due to the hydraulic pressure used in their operation.
Robustness: Hydraulic turrets are known for their robust construction and ability to withstand high forces during machining operations.
Cost: Hydraulic turrets are often less expensive upfront compared to electric turrets.
(3)Applications: Hydraulic turrets are commonly used in CNC turning machines and machining centers for general-purpose machining operations, especially in environments where heavy cutting loads are common and where rapid tool changes are not critical.
5.Distinguishing Factors:
(1)Drive Mechanism: The primary distinguishing factor among these turret types is the method of drive: servo turrets use servo motors, power turrets use hydraulic or pneumatic power, and electric turrets use electric motors.
(2)Tool Change Speed and Accuracy: Servo and electric turrets generally offer faster and more accurate tool changes compared to power turrets.
(3)Tool Capacity:Servo turrets typically have more tool stations compared to power and electric turrets, allowing for greater flexibility in tool selection.
(4)Suitability for Applications:The choice between these turret types depends on factors such as the required tool change speed, precision, and the specific machining requirements of the application.
In summary, while servo, power, and electric turrets all serve the purpose of holding and indexing cutting tools in CNC machining centers and lathes, they differ in terms of drive mechanism, tool change speed, precision, and suitability for various machining applications. Choosing the right turret type depends on factors such as the desired level of precision, production volume, and machining complexity.
Shanghai Ants Machine Equipment Co., Ltd. can provide timely technical support, training and spare parts supply. We only produce high quality CNC lathes!
