FX32P-75CNC High Precision Cylindrical Grinding Machine

1. Machining capacity:

Maximum rotary diameter of table: 300mm.

Maximum distance between two top centers: 500mm.

Maximum grinding diameter: 200mm.

Maximum load between two top centers: 80kg.

2. Grinding wheel parameters:

Grinding wheel diameter x width x aperture: 455 x 50 x 127mm.

Grinding wheel speed: 1470rpm, maximum linear speed up to 35m/s.

3. Feeding parameters:

X-axis feeding speed: 6m/min, X-axis minimum setting unit is 0.001mm.

Table Z-axis rapid traverse speed: 8mm/min, Z-axis minimum setting unit is also 0.001mm, Z-axis maximum travel according to the specific model varies.

4. spindle parameters:

Headstock spindle speed: 50-500rpm.

5. Motor power:

Grinding wheel spindle motor: 4.5kw.

X-axis feed motor: 1.5kw.

Z-axis feed motor: 1.5kw.

The selling points of the ANTISHICNC FX32P-75CNC high precision grinding machine include the following:

1. High precision machining capability:
High surface quality: capable of realizing high surface roughness requirements, for example, it can achieve Ra0.2μm surface roughness, which is very important for the machining of workpieces that require high-precision surface quality, and it can make the surface of the workpieces smooth and improve the usability and aesthetics of the workpieces.
High-precision dimensional control: excellent performance in dimensional accuracy, the smallest setting unit of X-axis and Z-axis can reach 0.001mm, which can accurately control the machining dimensions of the workpiece and ensure the machining accuracy, which is a great advantage for the machining of parts with high requirements for dimensional accuracy, such as aerospace parts and precision mechanical parts.
High shape accuracy: good control in cylindricity, roundness and other shape accuracy can ensure the shape accuracy of the workpiece and improve the quality and reliability of the workpiece.

2. Diversified grinding functions:
Diameter grinding: For small quantity production, the automatic feeder together with the non-sparking timer can obtain good grinding quality; for large quantity production, the two-stage automatic feeder together with the two-stage measuring device (special accessory) can provide high output and grinding effect.
Cross Diameter Grinding: The automatic intermittent feeder and the hydraulic driven table enable the workpiece to be effectively cross diameter ground, which can meet the requirements of different workpieces for cross diameter grinding.
End face grinding: Remove the rotating cover of the work spindle head and replace it with a three-jaw or four-jaw chuck to change the position of the positioning tip to rotate the chuck and fix it at 90° for end face grinding, which is convenient and quick to realize end face grinding processing.
Shoulder grinding: when the workpiece O.D. and its shoulder grinding are to be completed at one time, the workpiece is supported by the two top centers and the grinding wheel is modified on the right side of the grinding wheel head and rotated at an angle to be grinded, which improves the processing efficiency and processing accuracy.
Incline grinding: The workpiece can be supported by chuck or two centers, and the table and grinding wheel head can be rotated and easily adjusted to meet the needs of workpiece grinding for different inclinations.
I.D. grinding: I.D. grinding can be performed by I.D. grinding attachment (special attachment), and it can be performed by pulling down the I.D. grinding spindle and fixing it in the grinding position, which extends the processing range of the grinder.

3. Advanced CNC system: adopting Japan FANAKO CNC system, the CNC system has stable performance, powerful function and friendly operation interface, which is easy for operators to program and operate, and it can realize complex machining process and high-precision machining control.

4. Efficient productivity:
Fast feeding and moving speed: the table Z-axis fast moving speed is fast, which can reach 8mm/min, and the X-axis feeding speed is also high, which can reduce the machining auxiliary time and improve the productivity.
High degree of automation: Equipped with a series of automation functions and devices, such as automatic tool feed, automatic measurement and other functions, which improves machining accuracy and also reduces manual intervention and improves productivity.

5. Good machine tool structure and configuration:

High-quality components: the machine tool adopts high-quality materials and components, such as precision guide rail, screw, etc., to ensure the accuracy and stability of the machine tool.

Stable structure: the overall structure is reasonably designed with good rigidity and stability, which can withstand large grinding force and ensure the stability and reliability of the machining process.

Perfect accessories: complete standard accessories, such as machine tool instruction manual and factory certificate of conformity, leveling screws and foot pads, water tank and magnet filter, grinding wheel flange remover, grinding wheel balancing table and balancing bar, etc., which are convenient for users to use and maintain.

FX32P-75 CNC high precision grinding machine can be applied to many industries and process many kinds of products as follows:

1. Machinery manufacturing industry:

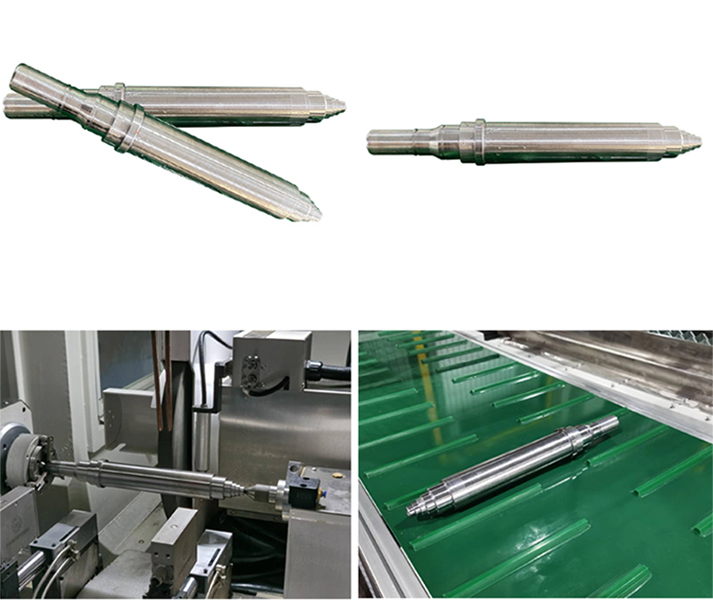

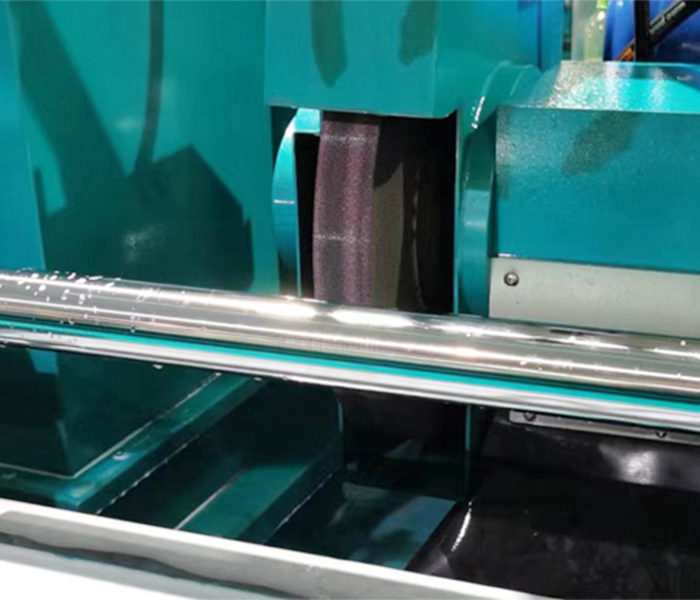

Shaft parts processing: such as all kinds of transmission shafts, motor shafts, machine tool spindles and so on. These shaft parts require high dimensional accuracy, cylindricity, roundness and surface roughness, and this grinder can meet the demand for high-precision machining to ensure the rotational accuracy and power transmission performance of the shaft parts.

Gear processing: It can be used for grinding the outer circle, inner hole and end face of gears. The gears processed by the grinding machine have higher tooth surface precision and better meshing precision, which can effectively reduce noise and vibration during operation and improve the efficiency and service life of gear transmission.

Mold processing: In mold manufacturing, the grinder can be used to process mold cavities, cores, slides and other key components. It can accurately control the size and shape accuracy of the mold parts, ensure the closing accuracy and molding quality of the mold, and has good adaptability to the processing of molds with complex shapes.

2. Automobile manufacturing industry:

Automobile parts processing: Camshafts, crankshafts, piston pins and other parts in automobile engines need to be ground with high precision to ensure the performance and reliability of the engine. The grinder can meet the requirements of high precision and high efficiency processing of automobile parts and improve the production quality and production efficiency of automobile parts.

Automotive brake system parts processing: such as brake discs, brake drums and other parts of the plane and cylindrical grinding processing, need to ensure its flatness, parallelism and roundness and other precision indicators, HOTELMANN FX32P-75CNC high-precision grinder can provide high-quality machining solutions for automotive brake system parts.

3. Aerospace industry:

Aircraft parts processing: the blades, impellers, shafts and other parts of aircraft engines require extremely high machining accuracy and surface quality, and this grinder can meet the high-precision machining needs of these parts to ensure the flight safety and performance of the aircraft.

Aerospace parts processing: Aerospace parts usually have complex shapes and strict precision requirements, such as the structural components of satellites, rocket engine parts, etc. Hautman FX32P-75CNC high-precision grinding machine can provide reliable technical support for the processing of aerospace parts.

4. Electronic industry:

Processing of electronic components: e.g. package substrates for semiconductor chips, microvia processing of printed circuit boards (PCBs), etc. The grinder can realize high-precision plane grinding and micro-hole processing to ensure the connection performance and signal transmission quality of electronic components.

Precision connector processing: the pins, jacks and other parts of various precision connectors require high-precision grinding processing to ensure the insertion and extraction force and contact reliability of the connectors, and this grinder can meet the processing requirements of precision connectors.

5. Medical device industry:

Artificial joint processing: the manufacture of artificial joints requires high-precision machining process, the grinder can be used for grinding the outer circle, inner hole and end face of the femoral stem, acetabular cup and other parts of artificial joints, to ensure the dimensional accuracy and surface quality of the artificial joints, and to improve the service life of the artificial joints and the patient’s experience of using them.

Medical equipment parts processing: such as the processing of various shafts, sleeves and disks in medical equipment, which need to ensure their dimensional accuracy and surface quality to meet the requirements of medical equipment, the grinder can provide high-precision solutions for the processing of medical equipment parts.
