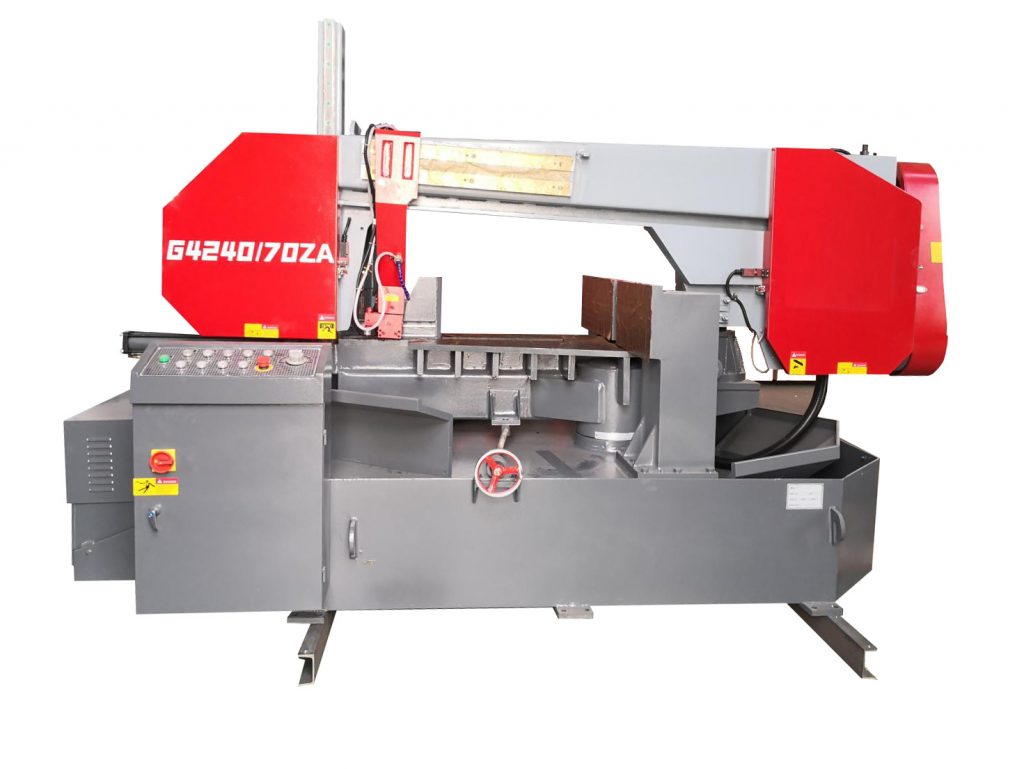

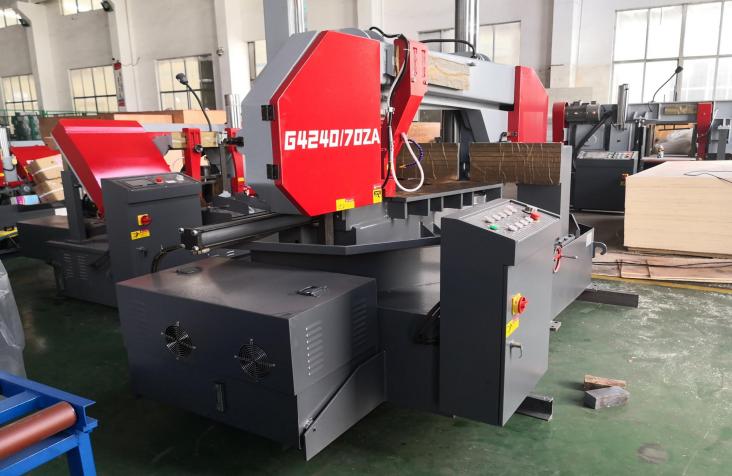

G4240/70ZA Angle Band Saw Machine

Model G4240/70ZA(Customized)
90° Max.cutting capacity Round 400mm
90° Max.cutting capacity Quadrate 400×700mm
45° Max.cutting capacity Round 400mm
45° Max.cutting capacity Quadrate 400×400mm
Saw blade
Blade Speed 20/30/43/54/60 m/min (line speed)
Blade Size 41×1.3mm
Cleaning wire brush & flood coolant
Guides Carbide and bearing blade guides
Tension Manual
Canted blade  5°
Motor output
Blade 5.5kw
Hydraulic 1.5kw
Coolant 0.06kw
Work feeding Manual
Work Vice Hydraulic
Machine size 3520*1840*2200mm
Machine weight About 3 ton

Equipment Introduction
●Mainly suitable for angle sawing of small steel pipes, profiles or plates in industries such as automobiles, elevators, hydraulic trusses, construction cranes, oxygen generators, etc.
●Saw belt speed five gears variable speed.
●Private custom machine, dedicated to sawing rectangular materials with a maximum diameter of 700*400mm.
●The sawing tolerance is 20mm, and the track beyond the width cannot be forcibly processed.
●Hydraulic control of saw frame lift
●Vise clamping
