Micro Bench Drill & Mill

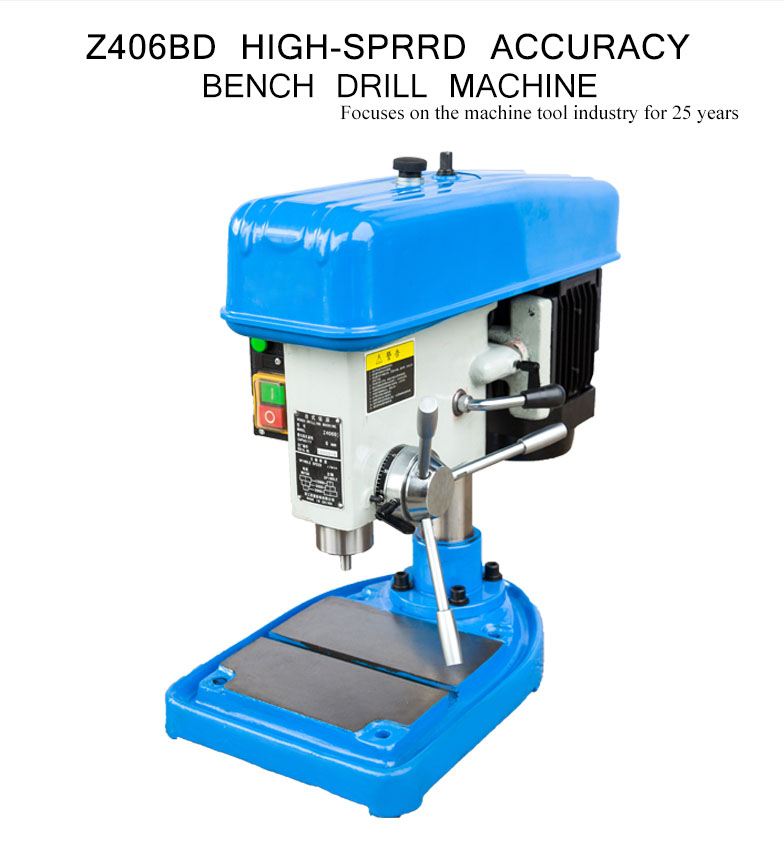

High-speed accuracy bench drilling machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

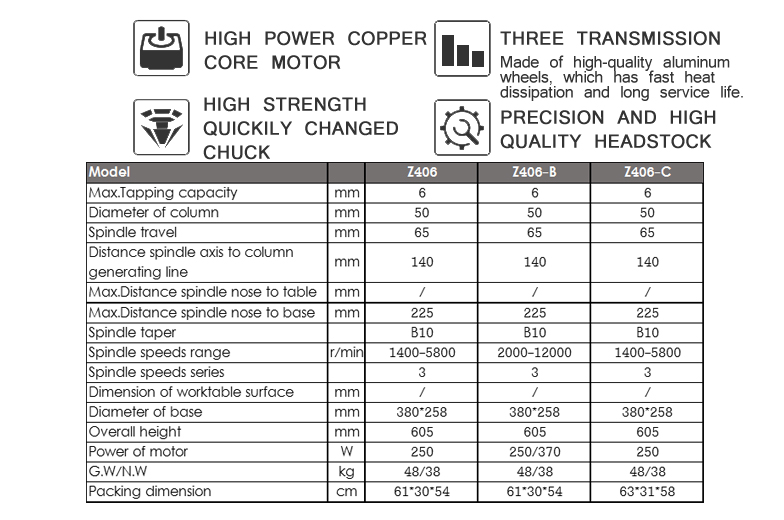

Model ZWG-6 ZWG-4 Z406C Z406B Z406 Z4006G
Max.tapping capacity 6mm 4mm 6mm 6mm 6mm Φ6(steel)
Diameter of column 50mm 40mm 50mm 50mm 50mm Φ55
Spindle travel 55mm 50mm 65mm 65mm 65mm 65mm
Distance spindle to column 140mm 125mm 140mm 140mm 140mm 140mm
Max.distance spindle nose to base 210mm 200mm 225mm 225mm 225mm 215mm
Spindle taper B10 B6 or JTO B10 B10 B10 B10
Spindle speeds range 6700~15000r/min 2800~11500r/min 1400~5800r/min 2000~12000r/min 1400~5800r/min 2000~12000r/min
Spindle speeds series 3speeds 3speeds 3speeds 3speeds 3speeds 3speeds
Dimension of base 250X360mm 190×230 380×258 380×258 380×258 260x350mm
Overall height 490mm 415mm 605mm 605mm 605mm 620mm
Power of motor 370W 120W 250W 250W/370W 250W 0.37KW
G.W/N.W 50/40kg 32/28kg 48/38kg 48/38kg 48/38kg ≈50kg
Packing dimension 56x30x60cm 34x30x60cm 61x30x54cm 61x30x54cm 61x30x54cm 600x310x580mm

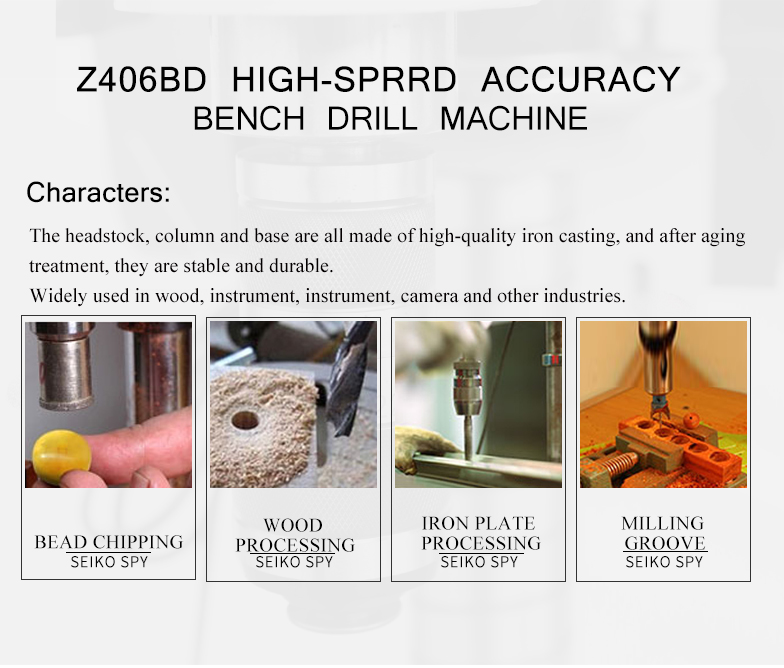

●Both spindle head,column and base using high quality cast iron,strong and everlasting

●High precision with excel lent feature,widely use at instrument and camera area
