Pipe bending machine is a new type of pipe bending tool with the function of pipe bending and jacking.
Classification of pipe bending machine:
According to the power type classification: hydraulic pipe bender, electric platform pipe bender, pneumatic pipe bender, manual pipe bender, etc.
According to the control mode classification: CNC bending machine, semi-automatic bending machine, automatic bending machine, etc.
Classification according to the type of work: single head pipe bender, double head pipe bender, multi-head pipe bender, etc.
Classification according to the processing scope: micro pipe bender, small pipe bender, large pipe bender, etc.
Pipe bending machine applicable industry:
Transportation: automobile directioner, automobile brake hose, intercooler, urea detector, high pressure oil pipe, exhaust pipe, air conditioning pipe, seat, balancer, bullet train pipe, bicycle frame.
Leisure industry: leisure seats, leisure umbrellas, fitness equipment, amusement facilities, strollers, etc.
Heavy industry: boilers, shipyards, power plants, chemical plants and other piping.
Furniture industry: indoor and outdoor tables and chairs, office tables and chairs, bed and other furniture.
Electrical appliances: air conditioner condenser, water heater, refrigerator refrigerator, electric heater, etc.
Other industries: medical bed, bathroom equipment, agricultural greenhouse skeleton, household decoration, etc.

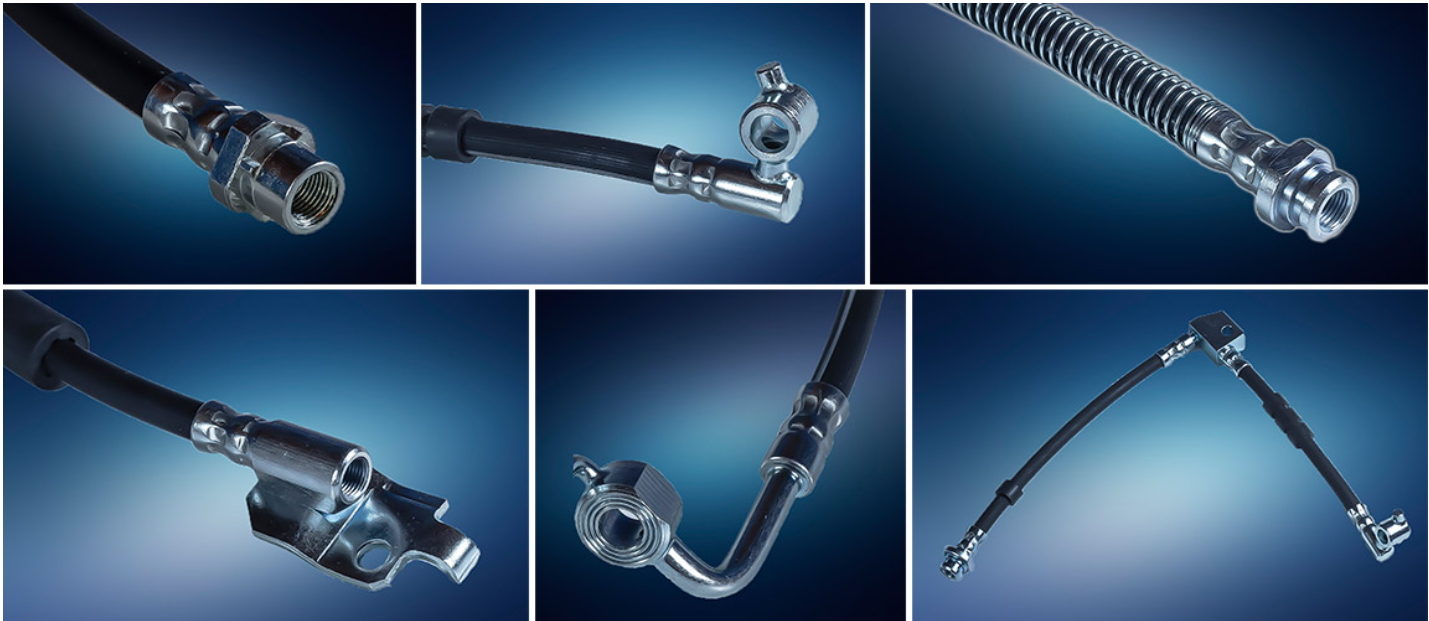

Recently, the Shanghai ANTS team received a consultation from a manufacturer of automotive brake hose.
Customer pipe requirements are:
1.The pipe diameter is 4.76mm, but may be increased to 8mm in order to meet future demand.
2.The wall thickness is 0.75-1 mm
3.The material is steel pipe

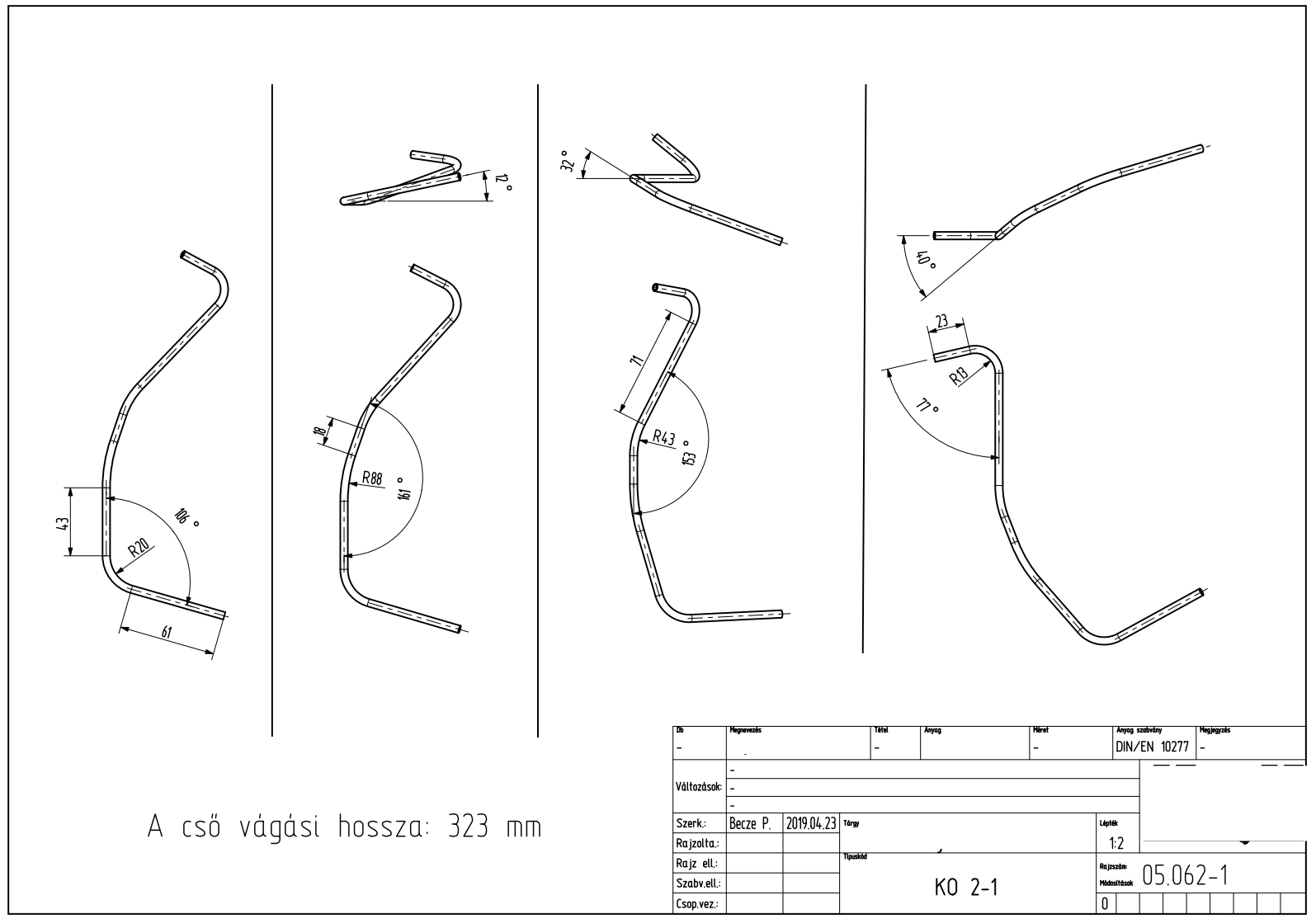

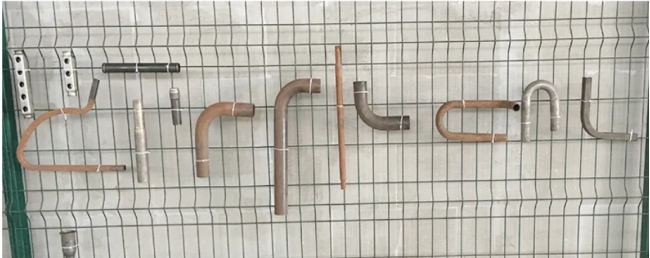

4.See the following drawing for bending radius

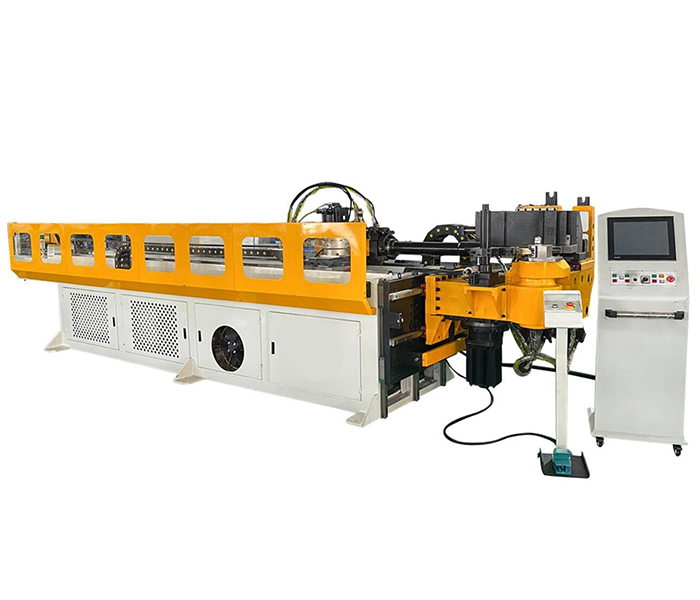

For this product, I will recommend a professional bending machine for auto parts to the customer (it can achieve 80mm for the R difference of the customer’s product).
 |
 |
| Specifications of Pipe Bender | Unit | SB28CNC-5A-TMRE | Remark | |
| Rated torque of bending servo | N.m | 1100 | The maximum is twice the rated value | |
| Maximum bend specifications | Mm | 28X1.8 | Carbon steel/pipe diameter * Wall thickness | |
| Bending radius | mm | R20-200 | Can be enlarged | |
| Maximum R difference of bend radius | mm | 80 | ||
| Maximum bending Angle | degree | 190 | ||
| Maximum feeding length at a time | mm | 2500 | ||
| Machine center height | mm | 1250 | ||
| Bending speed (C-axis) | r/min | ～14 | ||
| Space angular velocity (B-axis) | r/min | ～40 | ||
| Repeated positioning accuracy | Z axis | mm | +-0.1 | Guided mode boost |
| B axis | degree | +-0.1 | corner | |
| C axis | degree | +-0.08 | Pipe bending | |
| Y axis | mm | +-0.1 | Feed boost | |
| A axis | mm | +-0.1 | Up and down die changing | |
| U axis | mm | +-0.1 | Side-to-side release | |
|
Control form |
B axis | degree | Motor servo control | corner |
| C axis | degree | Motor servo control | Pipe bending | |
| Y axis | mm | Motor servo control | Feed boost | |
| Z axis | mm | Electromagnetic flow control | Guided mode boost | |
| A axis | mm | Motor servo control | Up and down die changing | |
| U axis | mm | Motor servo control | Side-to-side release | |
| Control system | Industrial computer | |||
| Operating interface | 15 “touch screen | |||
| Allowable elbow number of pipe fittings | 60 | Can be enlarged | ||
| Allowed number of stored program segments | 10000 | |||
| Total motor power | kw | 13.15 | ||
| Hydraulic system working pressure | MPa | 10 | ||
| Machine volume | m | 4.5X1.4*1.65 | Length * width * height | |
| Machine weight | kg | About 2500 | ||
If you are also a manufacturer of automotive brake hoses, or have similar processing needs, welcome to consult Shanghai ANTS. We have rich experience in the manufacture and application of pipe bending machine, and can provide you with professional technical support.
