CNC wheel turning machine is a high-precision, highly automated processing equipment, widely used in railway transportation, automobile manufacturing, aerospace, shipbuilding and machinery manufacturing. It is controlled by a computer numerical control system and can achieve high-precision processing to ensure the stability and consistency of the processing quality of the shape, size and complex shape of wheels and related parts. CNC wheel turning machine not only improves production efficiency and reduces production costs, but also enhances the safety of the processing process, and can be customized according to customer needs. It plays an important role in railway vehicle wheelset processing, automobile wheel manufacturing, aerospace precision parts processing and machinery manufacturing, and is an indispensable key equipment in modern manufacturing.

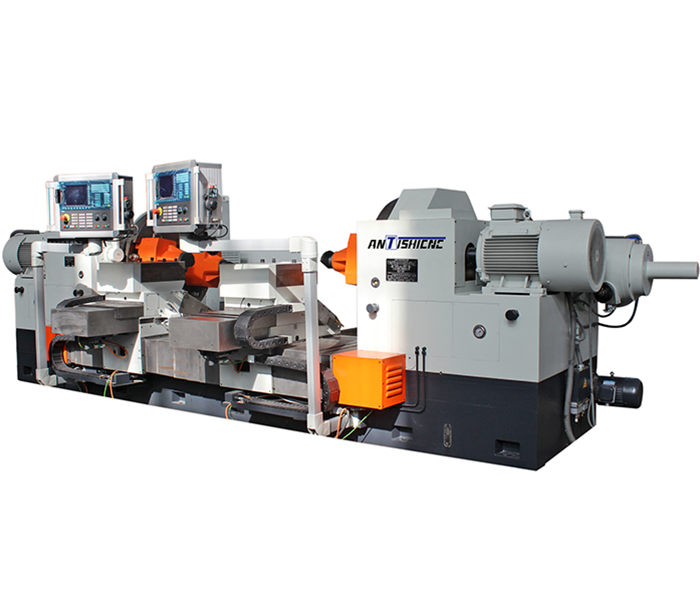

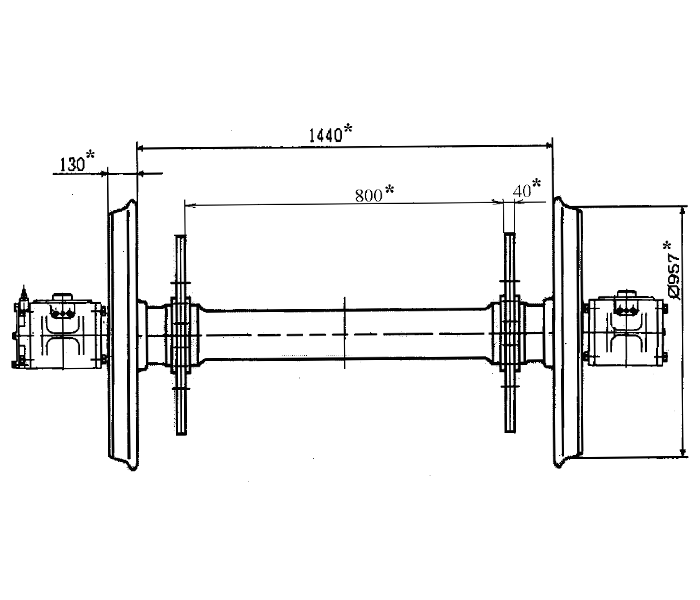

Recently, ANTISHICNC received an inquiry for processing railway vehicle wheelsets. The machine is required to turn wheelsets with a gauge of 1520 mm for railway locomotives and vehicles for freight and passenger transportation. The diameter of the processed wheel along the rolling circle is 660 to 1050 mm. The processing time for each wheelset is required to be less than 20 minutes. After further in-depth communication with the customer, the CNC wheel turning machine CK8011E/1 was recommended.
| Specification | CK8011E/1 | |
| Track Gauge | 1520mm | |
| Processing wheel set diameter range | φ600-1100mm | |
| Wheel set clamping diameter range | Φ520-900mm | |
| Wheel set axle length range | 2100-2630mm | |
| Wheel width range | 120-150mm | |
| Max workpiece weight | 5000Kg | |
| Spindle speed series | stepless | |
| Spindle speed range | 6-60r/min | |
| Chuck diameter | 1100 mm | |
| Number of coordinate axes | (X-axis, Z-axis) 2 each | |
| Tool holder feed level | stepless | |
| Tool holder feed range (commonly used) | Horizontal direction (X) | 0.5-2mm/r |
| Longitudinal (Z) | 0.5-2mm/r | |
| Tool holder Travel | X axis | 320mm |
| Y axis | 720mm | |
| Main motor power | 2×30KW | |
| Synchronous speed | 1500r/min | |
| CNC system | Siemens 828D (two sets) | |
| AC servo motor | Model | 1FK7101 (4 pieces) |
| Torque | 15.5/27N.m | |
| Speed | 3000 r/min | |
| Overall dimensions of machine tool (length × width × height) | about 7000×2400×2100mm | |
| Total power of machine tool | 100KVA | |
| The total weight of the machine tool | about 28T | |
| Machine tool noise | ≤83dB(A) | |
| Max cutting area | ||
If you have similar needs for railway vehicle wheelset processing, we support the processing of wheelsets of various gauges.
