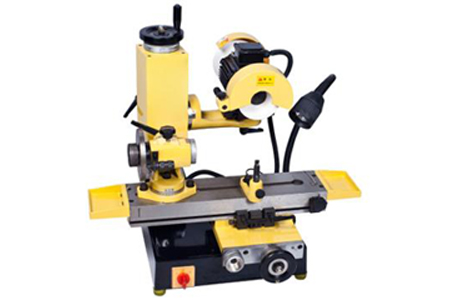

Universal tool grinding machine ANTS 600F

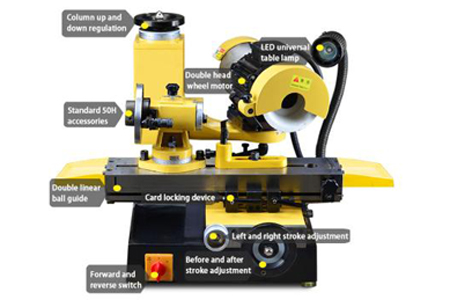

The working table uses two high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material’s cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding. Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper cutters,etc.

Model ANTS 600F
Worktable Diameter 300mm
Worktable travel 150mm
Worktable Size 130×520mm
  Wheel head Rotating Angle 360°
Grinding wheel size 125×50×32mm
Power/Speed 2800 RPM

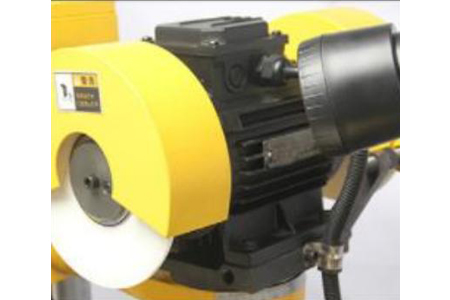

Motor 3/4HP  220V/380V
Dimension 700×630×630mm
Weight 175kg/160kg

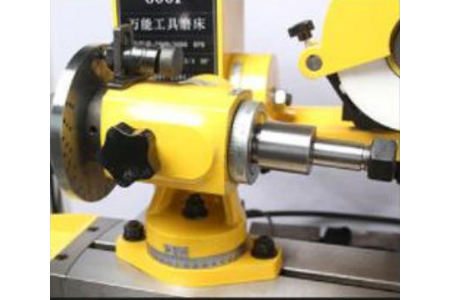

Standard Equipment 50C,50H Grind slot miller,face and side cutter,lathe tool ,hobbing cutter,reamer bit etc.
Option Equipment ★50E Grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter.

★50K Grind drill bit ,screw tap,side mill,round bar and so on.

★50D Grind end mill ,side mill and so on.

★50B Tablebox

★50J Thimble
