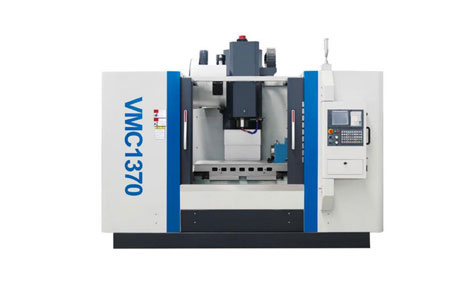

VMC1370 Series Machining Center

Product Description:

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Japanese NSK bearing germany R+W coupling

Automatic lubrication system

Chip conveyor at optional

Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Specifications Units VMC1370
Table size mm 1400×700
X axis travel mm 1300
Y axis travel mm 700
Z axis travel mm 700
Max. worktable load kg 1400
T slot(number-width-pitch) 5-22×140
Max. spindle speed rpm 8000(Optional:10000 )
Spindle taper mm BT50/BT40
Main motor power kw 15/18.5
X/Y/Z rapid traverse speed m/min 24/24/18
Cutting feed speed mm/min 1-6000
Guide rail type Linear rail
Distance from spindle axis to column surface mm 780
Distance between spindle nose and worktable surface mm 160-860
Positioning accuracy mm ±0.0075
Repeat positioning accuracy mm ±0.005
Tool magazine Arm 24
Max. tool diameter mm φ112 Adjacent)/ φ200(Apart)
Max.tool weight kg 18
Machine weight kg 10000
Overall dimension mm 3870x3165x2920
