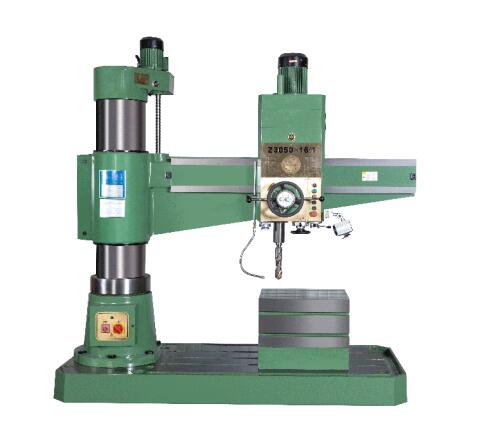

A radial drilling machine can also be called a horizontal arm drilling machine.A drilling machine with a headstock that can move left and right on the radial arm and rotate around the column with the radial arm.It can be used for various forms of processing such as drilling, reaming, drilling, tapping, and scraping the end face.It is widely used in single-piece and small and medium-sized batch production to process holes for larger workpieces in volume and weight.It has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large workpieces.It has the advantages of automatic lifting, automatic tool feeding, mechanical locking, mechanical variable speed, mechanical and electrical dual insurance, etc.
For workers, the biggest advantage of the radial drilling machine is that it is very convenient to operate and very flexible in the processing process. The use of the radial arm makes the height and direction better controlled.There are two types of radial drilling machines sold on the market, one is a mechanical radial drilling machine and the other is a hydraulic radial drilling machine. Now more and more users tend to hydraulic radial drilling machines.
1.The radial arm, column, and console are all made of high-strength cast iron, which is not easy to deform and wear-resistant.The guide rail processing of the radial drilling machine equipment is made of special technology, which greatly improves the rigidity of the gear.
2.The radial drilling machine is suitable for drilling, reaming and other processes on large and medium-sized workpieces and has a wide range of applications.
3.The lifting function of the radial drilling machine, the upper and lower movement of the radial arm is powered by the motor at the top of the column, and the screw is driven to move the radial arm up and down.Safety equipment is installed on the radial arm of the equipment to avoid the radial arm suddenly falling off during the operation of the radial drilling machine equipment.The clamping of the radial arm is hydraulically driven by the equipment. After clamping, the equipment locks itself, and the movement of the radial arm rising and falling is controlled by the electrical switch of the equipment.
4.The clamping action of the headstock and column of the radial drilling machine equipment is hydraulically driven, and then the equipment fixture is clamped by itself.The driving and clamping actions can be carried out together or separately.

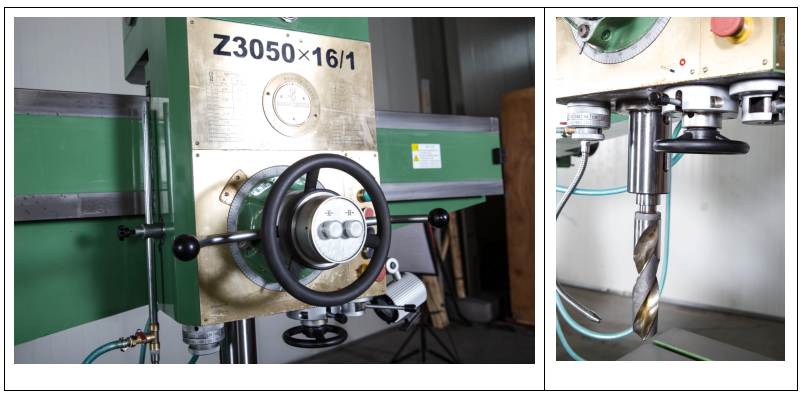

5.The headstock can be moved laterally along the radial arm to ensure the driven movement and operation of the main shaft of the equipment, and the rolling speed range of the main shaft is divided into 16 levels.Speed conditioning can be done by rotating the handwheel or the spindle conditioning button.The spindle feed range is the same and is divided into 16 levels, which are completed by rolling the handwheel or the spindle conditioning button.
6.The outer column of the radial drilling machine drives the radial arm to reverse around the inner column, and the radial arm moves up and down along the pin.
7.The main reason for the simplification of the operation of the radial drilling machine equipment is that the drilling position of the equipment is easy to adjust, the price is cheap, and the shape is beautiful.
8.The strength of the stability of the radial drilling machine equipment itself determines the performance of the machine tool, and can determine the accuracy and speed of the drilling machine to process the workpiece.The spindle structure is made of high-strength No. 45 steel, which is treated at high temperature to ensure that the use time of the machine tool is reduced and the operation method is simplified.
Shanghai ANTISHICNC supply the Z3050, Z3063, and Z3080 models, which are also the most commonly used models in industrial production.If you have any needs, you can contact Shanghai ANTISHICNC at any time, and we will recommend the most suitable radial drilling machine for you.
Tags:Radial drilling machine,horizontal arm drilling machine, Z3050 hydraulic radial drilling machine
