Core Processing Principle: Synchronous multi-station indexing and integrated end-to-end processing.

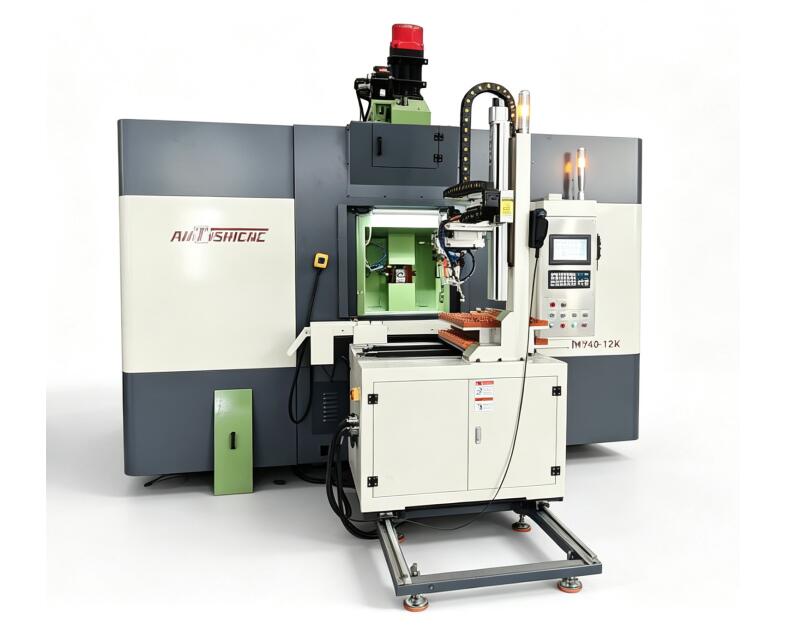

“Transfer Machine” is a modular, multi-station automated metal processing system. Its core operating principle relies on an architecture combining automatic indexing transfer with parallel multi-station operations—distinguishing it from the serial processing modes of traditional equipment. The system comprises an indexing transfer mechanism, independent processing stations, specialized work-holding fixtures, a CNC control system, and modules for automatic loading/unloading and inspection; it is primarily available in two structural configurations: linear and rotary (disk-style).
During operation, work-pieces are precisely secured using specialized fixtures and automatically transferred—via translation or rotation—between workstations by an indexing mechanism, ensuring precise positioning and clamping at each stage. Each workstation is equipped with an independent machining spindle and tooling system to perform specific operations—such as drilling, turning, milling, boring, tapping, chamfering, and deburring—either individually or in combination. All workstations operate in parallel under the synchronized coordination of the control system, enabling simultaneous processing of multiple workpieces. The entire process, from raw material loading to finished part unloading, requires no manual intervention and is completed in a single pass, thereby eliminating errors and efficiency losses associated with multiple clamping and repositioning steps. Furthermore, this new generation of all-servo CNC transfer machines replaces traditional cam-driven mechanisms with software-based precision control of cutting parameters, feed rates, and machining depths, effectively meeting the demands for high-precision, flexible mass production.
Core Application Areas: Covering High-End, Precision Mass-Production Scenarios
Leveraging advantages such as high cycle rates, high precision, and high consistency, the Transfer Machine focuses on the mass production of standardized, multi-process precision components. Its core application areas span multiple high-end manufacturing sectors:
- Automotive Parts Industry: A primary application sector, suitable for the mass production of safety-critical components—such as small engine parts, valve assemblies, fuel injectors, brake valve bodies, sensor bases, and precision transmission bushings—while meeting rigorous tolerance standards and stability requirements.
- Hydraulics, Pneumatics, and Valves Industry: Widely used for processing hydraulic valve spools and sleeves, pneumatic fittings, gas valve assemblies, and precision valve bodies, as well as tubular and complex precision structural parts; compatible with materials such as die-cast aluminum, stainless steel, and copper.
- Precision Electronics and Connectors Industry: Designed for miniature partsincluding high-density electronic connectors, micro-precision terminals, and sensoraccessories—enabling integrated six-sided precision machining that balances dimensional accuracy with mass-production efficiency.
- General Hardware and Pipe Fittings Industry: Utilized for the large-scale production of standardized components such as precision shafts, sleeves, fasteners, plumbing fittings, and small bearing parts, catering to both consumer and industrial hardware manufacturing needs.
- New Energy and Precision Instruments Industry: Suitable for the high-precision mass production of electronic control components for new energy vehicles, precision structural parts for instruments, and micro-transmission components, aligning with the trend toward refined, high-end manufacturing.
Key Product Categories
Leveraging the multi-process, compound machining capabilities of the equipment, the Transfer Machine specializes in the production of various standardized, high-precision, multi-process components—primarily small to medium-sized parts. The core product categories are clearly defined as follows:
- Precision shaft and sleeve components: Cylindrical parts such as short shafts, bushings, sleeves, pins, and miniature drive shafts; capable of completing all machining processes—including external turning, internal boring, end-face machining, chamfering, and grooving—in a single setup.
- Valve bodies and fittings: Bodies and accessories for hydraulic, pneumatic, and gas valves; high- and low-pressure pipeline connectors; threaded pipe fittings; and other complex-shaped precision fittings.
- Small automotive powertrain components: Core parts such as valves, tappets, fuel injector components, precision brake system parts, and engine seal bases.
- Miniature precision electronic components: Connector terminals, sensor structural parts, and miniature precision hardware inserts; supports complete six-sided machining of miniature parts within an 80×80×80mm envelope.
- Standardized hardware accessories: High-volume, general-purpose components such as precision fasteners, plumbing hardware, and bearing accessories.
If you have similar requirements, please feel free to contact Shanghai ANTS Machine at contact@antsmachine.com In addition to offering Transfer Machine , Universal lathes, CNC lathes (including automation solutions), vertical lathes, and turning centers, we can also customize automated production lines to meet specific customer needs. Our technical team is ready to provide the optimal technical solution tailored to your requirements.
