Horizontal Band Saws

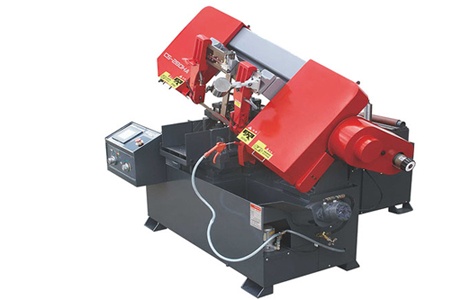

Horizontal metal band sawing machine (CS-280HA)

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Product description:
● Mainly used for sawing all kinds of ferrous and non-ferrous metals;

● The utility model has the advantages of reasonable structure, stable performance, high reliability and high precision, and is an ideal device for cutting medium and small batches.

Sawing Capacity(mm) Round material: Ø280 mm
Square material: 350w x 250h mm
Band saw wire speed(m/min) 20~90
Band saw wire specifications(mm) 27 x 0.9 x 3505 Main motor power(kw) 2.2(4p)
Hydraulic motor(kw) 0.75 Cooling pump(kw) 0.06
Work clamping method Hydraulic vice Saw blade tensioning method Manual
Main drive structure Worm gear drive Feeding mode Automatic feeding
Height of table(mm) 690 Overall size(mm) 2100 x 1800 x1650

* The series of machine tools are semi-automatic and automatic, automatic machine tool adopts PLC control, touch screen can preset 5 sets of sawing process parameters.
* A saw cutting device can be configured according to requirements.
