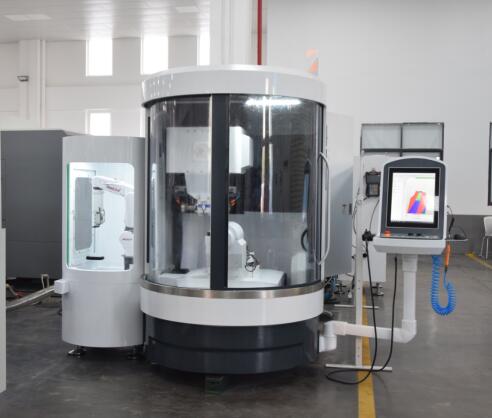

After a period of research and development testing, our company has launched a brand-new CNC tool grinding machine, the TG528, based on the original TG680. Compared to the TG680, this tool grinding machine has a wider processing range, capable of processing bar stock from 0.5-12mm and disc-shaped workpieces up to 200mm in diameter. It also features a high-power 15KW spindle with a maximum spindle speed of 10,000 RPM. Designed to meet the demands of high-load, high-precision, and high-efficiency mass production, it is an invaluable piece of equipment for tooling end-of-line manufacturing.
Recently, a tooling end-of-line manufacturer in Singapore contacted us, requiring the machining of dovetail cutters made of tungsten carbide. The customer wanted to mass-produce these cutters. After reviewing the customer’s workpiece drawings, our professional engineers recommended both the TG528 and TG680 models, suggesting that if the customer’s budget allowed, they should prioritize the TG528, as this newer machine offers a wider processing range and higher processing efficiency.
 |
 |

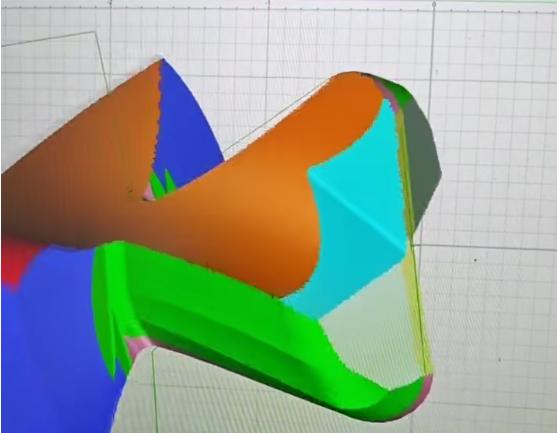

| Customer’s workpiece drawing (blurred) | Engineers conduct online simulated prototyping tests |
Below are the specific technical parameters of this newly developed tool grinder TG528.
| Parameters | TG528 |
| CNC system | SYNTEC 210MA-5E |
| A- axis tool holder interface | BT50 |
| Workpiece grinding diameter | 0.5 mm-12mm (disc type < 200mm ) |
| End gear grinding length | < 140 mm |
| Grinding blade length | < 180 mm |
| Maximum workpiece length | < 220 mm |
| A/ B axis rotation range | A- axis: 0 -∞ B -axis: 0 -360° |
| B- axis power | 1.2 kW / 100 rpm / 230 Nm |
| Spindle power | 15kW (10000r/min) |
| A- axis power | 0.6 kW / 200 rpm / 120 Nm |
| X/Y power | 1.3kw /1500rpm / 8.34Nm |
| Z- axis power | 2.9kw /1500rpm/18.6Nm |
| Maximum tool weight | 10Kg |
| Knife handle | It can be equipped with W20 and W25 hydraulic tool holders, SCHUNK tool holders, and Schoberland tool holders (optional according to customer requirements). |
| Linear axis positioning accuracy | ± 0.002 mm |
| Linear axis repeatability | ± 0.00 1mm |
| A-axis repeatability | 4 arc sec |
| B- axis repeatability | 4 arc sec |
| Table travel X-axis/ Y- axis / Z-axis | X: 590 / Y : 320 / Z: 250 |
| Power supply | AC380V 50HZ Three-phase |
| Total power of machine tools | 25 kW |
| Machine tool dimensions | 2080×2150×2400mm (including robot loading and unloading) |
| Machine tool dimensions | 1570×2150×2400 mm (excluding robot loading and unloading) |
| Machine tool weight | 4.5T |
| Machining tool contour accuracy | ± 0.00 5mm |
If you also need CNC tool grinding machines, please feel free to contact Shanghai Antes. We have professional engineers who can provide you with expert technical support.
